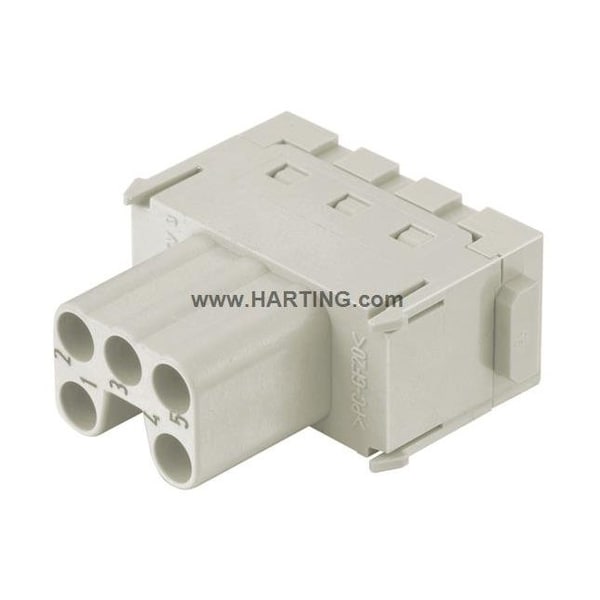

Han 5 Mod-Female-Es 16 A, PK 2
| Color | Pebble Gray |
|---|---|
| Min. Single Wire Size | 0.14 mm2 |
| Max. Single Wire Size | 2.5 mm2 |
| Series | Han-Modular |
| Max. Voltage | 400 V |
| Green Environmental Attribute | Pollution Degree 3 |
| Sub-Category | Modules |
| Connection Material | Copper Alloy |
| Approximate Amperage Rating - Grounding Braid | 16 A |
| Standards | EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; UL 2237 PVVA2.E318390; CSA-C22.2 No. 182.3 PVVA8.E318390 |
| Finish | Silver Plated |
| Material | Polycarbonate |
| Item | Connector Module |
| Max. Temp. | 125 deg C |
| Terminal Type | Clamp |
| Connector Type | Female |
| Current Rating | 16 A |
| Number of Contacts | 5 |
| Contact Finish | Silver Plated |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 2 |
