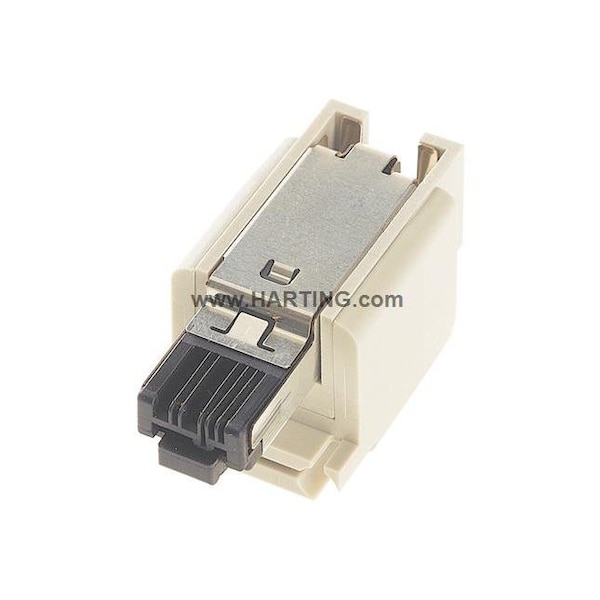

Han Brid-Rj45 C-M Rj Industria, PK 10
- Conector tipo puente RJ45 con protección metálica para uso industrial, paquete de 10 unidades.
| Color | Pebble Gray |
|---|---|
| Min. Single Wire Size | 0.22 sq mm (Stranded); 0.26 sq mm (Solid) |
| Max. Single Wire Size | 0.32 sq mm |
| Series | Han-Brid |
| Max. Voltage | 24 V |
| Item | Contact Insert |
| Connector Type | Male |
| Max. Temp. | 70 deg C |
| Approximate Amperage Rating - Grounding Braid | 10 A |
| Wire Range | 24 to AWG Stranded, 23 to 22 AWG Solid |
| Description/Special Features | Hybrid Network Connector |
| Sub-Category | Inserts |
| Material | Polycarbonate |
| Standards | EN 45545-2 (2020-08); UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076 |
| Green Environmental Attribute | Pollution Degree 3 |
| Diameter | 1.6 mm |
| Current Rating | 10 A |
| Number of Contacts | 2 |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 10 |
