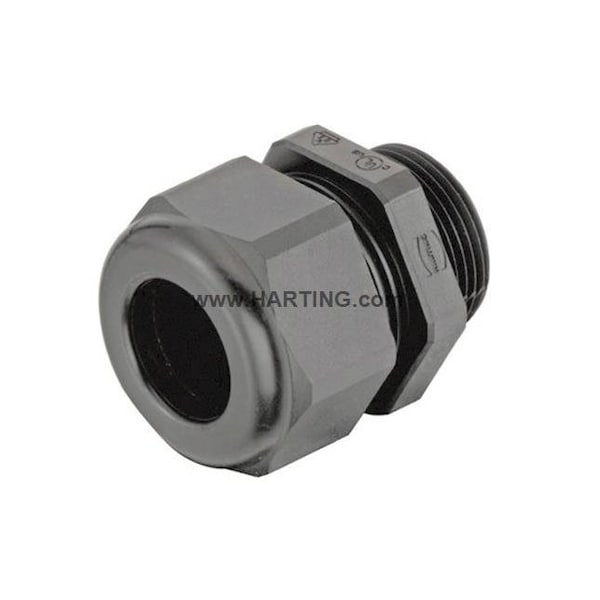

Han Cgm-P M20X1, 5 D.10-14Mm Bl, PK 10
Es una descripción técnica de un producto, no puedo realizar la traducción ya que contiene abreviaturas y especificaciones técnicas que podrían perder su sentido si se traducen literalmente.
| Item | Cable Gland |
|---|---|
| Cable or Pipe Diameter Range | 10 to 14 mm |
| Material of Construction | Polyamide |
| Width | 29.8 mm |
| Size | M20 |
| Colour (accessories) | RAL 9005 |
| Width across corners | 29.8 mm |
| Limiting temperature | -40 ... +100 °C |
| Material flammability class acc. to UL 94 | V-0 |
| Type of accessory | Cable gland |
| Tightening torque | ≤ 4.5 Nm (depending on the cable and the seal insert used) |
| Clamping range | 10 ... 14 mm |
| Wrench size | 27 |
| Approvals | DNV GL |
| Series of hoods/housings | Han |
| UL / CSA | UL 514B QCRV.E479780 || CSA-C22.2 No. 18.3 QCRV7.E479780 |
| Degree of protection acc. to IEC 60529 | IP68 || IP69 / IPX9K acc. to ISO 20653 |
| Material (cable glands) | Polyamide |
| Material (seal) | NBR |
| Package Quantity | 10 |
