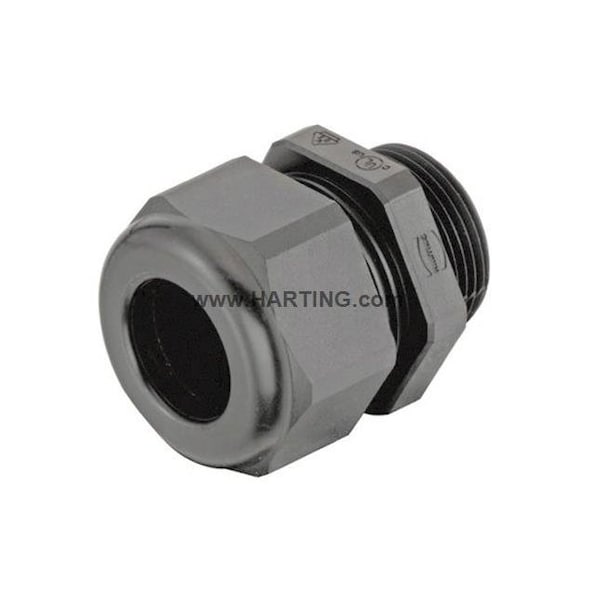

Han CGM-P M20x1, 5 D.6-12mm negro, paquete de 10.
| Item | Cable Gland |
|---|---|
| Cable or Pipe Diameter Range | 6 to 12 mm |
| Material of Construction | Polyamide |
| Width | 26.4 mm |
| Size | M20 |
| Degree of protection acc. to IEC 60529 | IP68 || IP69 / IPX9K acc. to ISO 20653 |
| Colour (accessories) | RAL 9005 |
| Material (seal) | NBR |
| Series of hoods/housings | Han |
| Material flammability class acc. to UL 94 | V-0 |
| Material (cable glands) | Polyamide |
| Tightening torque | ≤4.5 Nm (depending on the cable and the seal insert used) |
| Limiting temperature | -40 ... +100 °C |
| Approvals | DNV GL |
| Width across corners | 26.4 mm |
| Wrench size | 24 |
| Clamping range | 6 ... 12 mm |
| UL / CSA | UL 514B QCRV.E479780 || CSA-C22.2 No. 18.3 QCRV7.E479780 |
| Type of accessory | Cable gland |
| Package Quantity | 10 |
