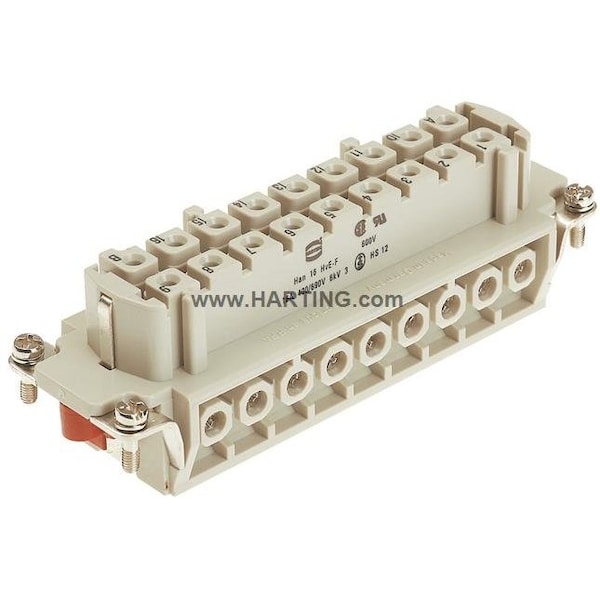

Tiene 16 posiciones con tornillo de inserción F.
| Color | Pebble Gray |
|---|---|
| Min. Single Wire Size | 18 AWG |
| Max. Single Wire Size | 14 AWG |
| Series | Han Hv E |
| Max. Voltage | 600 V |
| Item | Contact Insert |
| Material | Polycarbonate |
| Max. Temp. | 125 deg C |
| Sub-Category | Inserts |
| Connector Type | Female |
| Connection Material | Copper Alloy |
| Finish | Silver Plated |
| Approximate Amperage Rating - Grounding Braid | 16 A |
| Green Environmental Attribute | Pollution Degree 3 |
| Terminal Type | Screw |
| Standards | EN 45545-2 (2020-08); UL 1977 ECBT2.E235076 |
| Number of Contacts | 16 |
| Current Rating | 16 A |
| Contact Finish | Silver Plated |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 1 |
