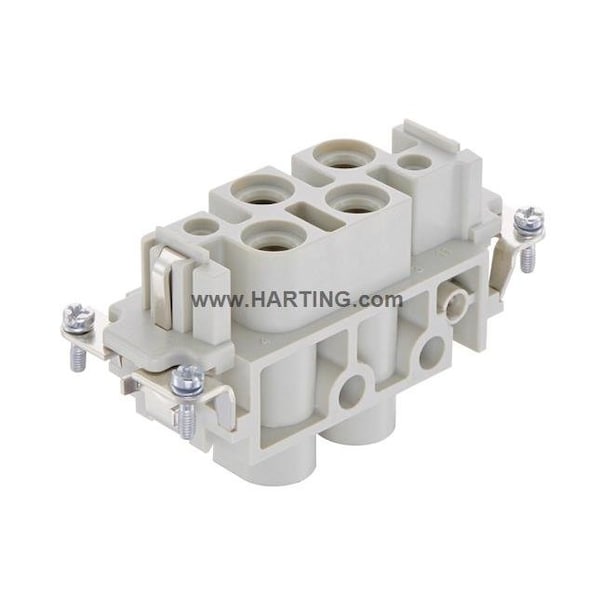

Inserto para conector hembra de 4 pines Han K 4/0
| Color | Pebble Gray |
|---|---|
| Min. Single Wire Size | 1.5 mm2 |
| Max. Single Wire Size | 16 mm2 |
| Series | Han-Com |
| Max. Voltage | 830 V |
| Standards | EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076 |
| Approximate Amperage Rating - Grounding Braid | 80 A |
| Finish | Silver Plated |
| Connector Type | Female |
| Sub-Category | Inserts |
| Terminal Type | Screw |
| Max. Temp. | 125 deg C |
| Material | Polycarbonate |
| Green Environmental Attribute | Pollution Degree 3 |
| Connection Material | Copper Alloy |
| Item | Contact Insert |
| Current Rating | 80 A |
| Number of Contacts | 4 |
| Contact Finish | Silver Plated |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 1 |
