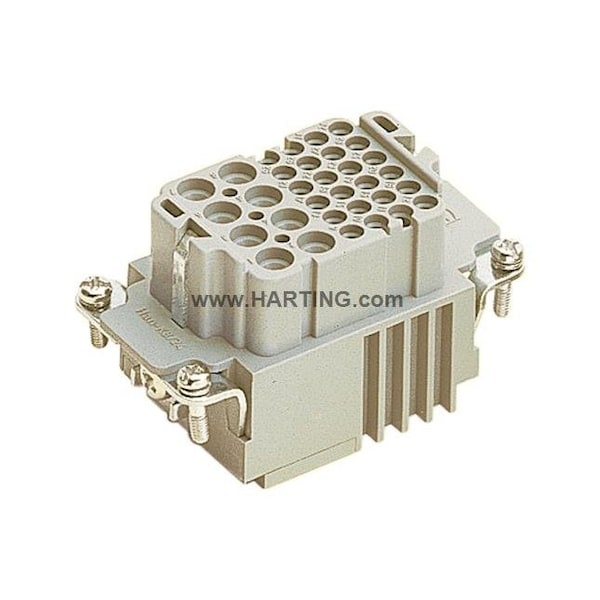

Han K 8/24 Pos. F Insert se traduce como "Inserto Han K de 8/24 posiciones F".
| Color | Pebble Gray |
|---|---|
| Min. Single Wire Size | 0.5 sq mm; 0.14 sq mm (Signal) |
| Max. Single Wire Size | 4 sq mm; 2.5 sq mm (Signal) |
| Series | Han-Com |
| Max. Voltage | 600 V |
| Item | Contact Insert |
| Approximate Amperage Rating - Grounding Braid | 16 A |
| Max. Temp. | 125 deg C |
| Sub-Category | Inserts |
| Connector Type | Female |
| Green Environmental Attribute | Pollution Degree 3 |
| Terminal Type | Crimp |
| Material | Polyamide |
| Standards | DNV GL; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076 |
| Current Rating | 16 A |
| Number of Contacts | 8 |
| Flammability Rating | UL 94 HB |
| Package Quantity | 1 |
