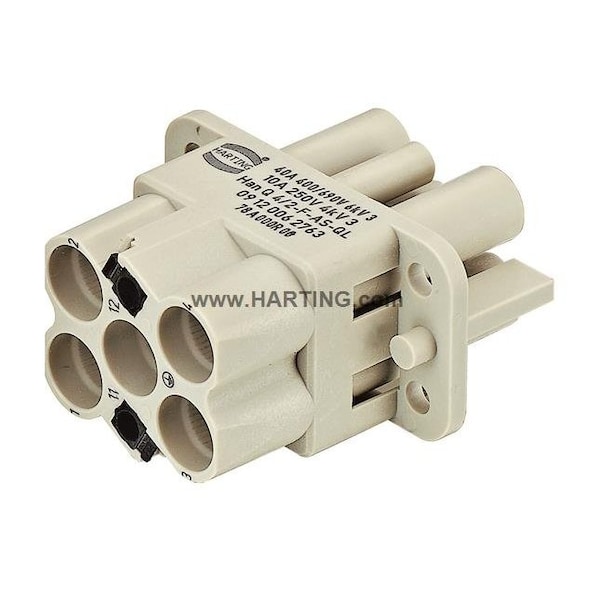

Inserto hembra 4/2 Han Q con resorte, paquete de 10
| Color | Pebble Gray |
|---|---|
| Min. Single Wire Size | 4 sq mm; 0.25 sq mm (Signal) |
| Max. Single Wire Size | 10 sq mm; 1.5 sq mm (Signal) |
| Series | Han Q |
| Max. Voltage | 400 V |
| Connection Material | Copper Alloy |
| Standards | EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076 |
| Finish | Silver Plated |
| Material | Polycarbonate |
| Max. Temp. | 125 deg C |
| Green Environmental Attribute | Pollution Degree 3 |
| Connector Type | Female |
| Sub-Category | Inserts |
| Terminal Type | Screw |
| Approximate Amperage Rating - Grounding Braid | 40 A |
| Features | With Han-Quick Lock |
| Item | Contact Insert |
| Current Rating | 40 A |
| Contact Finish | Silver Plated |
| Number of Contacts | 4 |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 10 |
