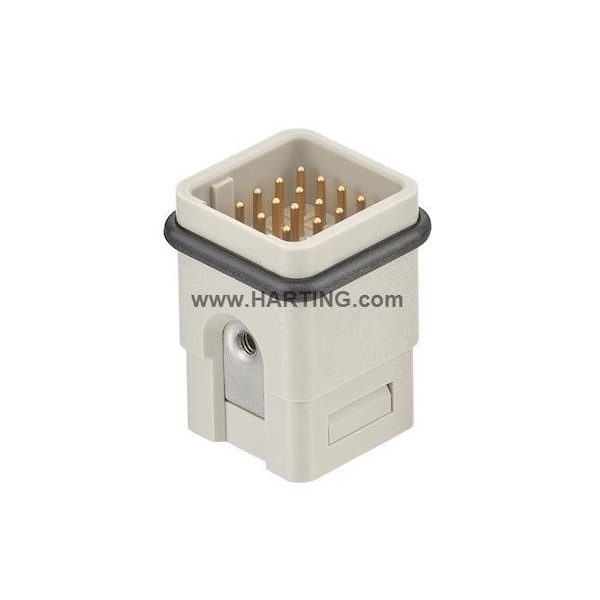

Han Q High Density es un medicamento de alta densidad, PK 10.
| Color | Pebble Gray |
|---|---|
| Min. Single Wire Size | 0.09 mm2 |
| Max. Single Wire Size | 0.56 mm2 |
| Series | Han Q |
| Max. Voltage | 50 V AC, 120 V DC |
| Connector Type | Male |
| Standards | EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076 |
| Terminal Type | Crimp |
| Green Environmental Attribute | Pollution Degree 3 |
| Max. Temp. | 125 deg C |
| Approximate Amperage Rating - Grounding Braid | 6.5 A |
| Sub-Category | Inserts |
| Material | Polycarbonate |
| Item | Contact Insert |
| Number of Contacts | 21 |
| Current Rating | 6.5 A |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 10 |
