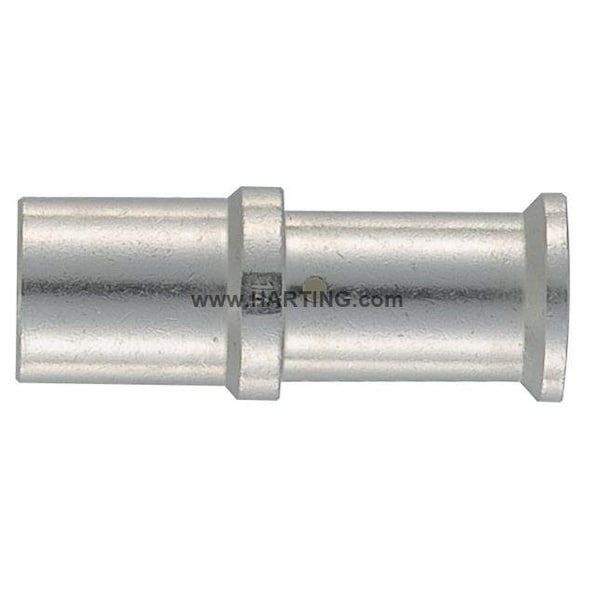

Han Tc250 Female Contact 50Mm²
| Min. Single Wire Size | 50 sq mm |
|---|---|
| Series | TC 250 |
| Description/Special Features | The Vibration and Shock Resistance can only be Met If The Cables are Fixed at an Appropriate Distance. Instructions for the Spacing of Strain Relief can be Found In The Document in Ecatalogue Under the Section Instructions. |
| Max. Temp. | 125 deg C |
| Connector Type | Female |
| Sub-Category | Contacts |
| Connection Material | Copper Alloy |
| Item | Connector Contact |
| Standards | EN 60664-1; IEC 61984 |
| Wire Range | 50 mm2 |
| Finish | Silver Plated |
| Contact Finish | Silver Plated |
| Contact Type | Crimp |
| Package Quantity | 1 |
