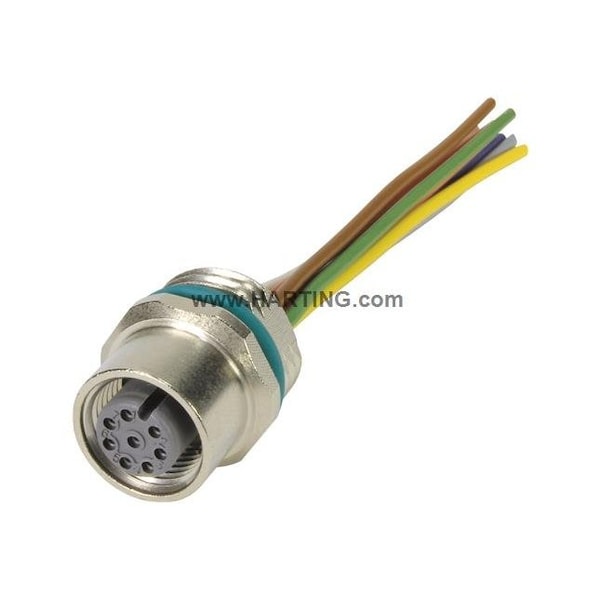

M12 Circular Connector, 8 Poles, 2 A
| Item | M12 Panel Feed-Through Cable Assembly |
|---|---|
| Type | Female |
| Material | Zinc Die-Cast |
| Standards | California Proposition 65, CSA Certified, ELV Compliant, IEC 61076-2-101, REACH SVHC, RoHS Complaint, UL Listed |
| Conductor Cross Section Size | 0.25 sq mm |
| Application | DC Power, Gigabit Internet, Sensors, Signal |
| Mounting Style | Female Thread |
| Coding | A |
| Connection Type | 50 cm Wire Leads |
| Connector Body Type | Socket |
| Shielded | No |
| Minimum Mating Cycles | 100 |
| Voltage Rating | 30 V |
| Number of Contacts | 8 Socket |
| IP Rating | IP67 |
| Number of Poles | 8 |
| Maximum Contact Resistance | 10 megaohm |
| Locking Style | Screw Connection |
| Insulation Resistance | Greater than 1,000 Megaohm |
| Maximum Operating Temperature | 80 deg C |
| Nominal Current | 2 A |
| Housing Material | Zinc Die-Cast |
| Connector Orientation | Straight |
| Minimum Operating Temperature | -30 deg C |
| Thread Size | M12 |
| Package Quantity | 1 |
