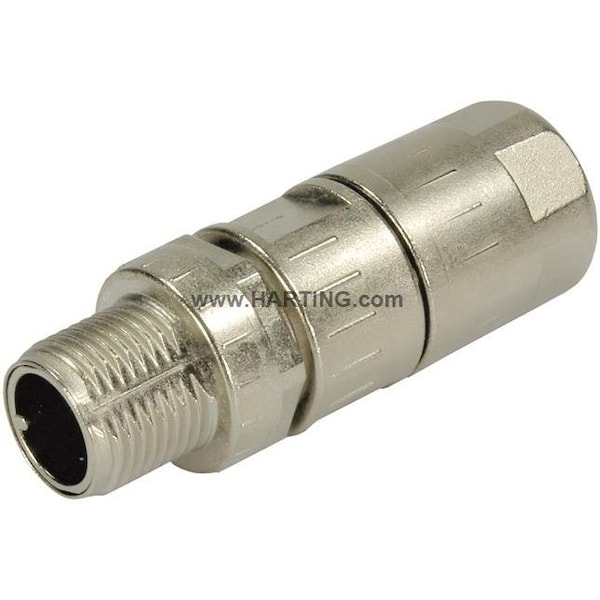

M12 Circular Connector, 8 Poles, 2 A
| Style - Connector | Straight |
|---|---|
| Cable Clamping Method | Crimp |
| Cable Opening Max. | 8.8 mm |
| Material | Zinc Die-Cast |
| Type | Male |
| Standards | California Proposition 65, CSA Certified, ELV Compliant, IEC 61076-2-101, RoHS Complaint, UL Listed |
| Item | M12 Circular Connector |
| Cable Opening Min. | 5.7 mm |
| Locking Style | Screw Connection |
| Number of Poles | 8 |
| Maximum Contact Resistance | 10 megaohm |
| Conductor Cross Section Size | 0.33 sq mm |
| IP Rating | IP67, IP65 |
| Minimum Mating Cycles | 500 |
| Application | DC Power, Gigabit Internet, Sensors, Signal |
| Includes Nut | Yes |
| Mounting Style | Male Thread |
| Connector Body Type | Pin |
| Voltage Rating | 30 V AC, 30 V DC |
| Connection Type | Crimp |
| Maximum Operating Temperature | 85 deg C |
| Minimum Operating Temperature | -40 deg C |
| Connector Orientation | Straight |
| Insulation Resistance | Greater than 1,000 Megaohm |
| Coding | A |
| Number of Contacts | 8 Pin |
| Thread Size | M12 |
| Cable Outside Diameter | 8.8 mm |
| Housing Material | Zinc Die-Cast |
| Nominal Current | 2 A |
| Shielded | Yes |
| Package Quantity | 1 |
