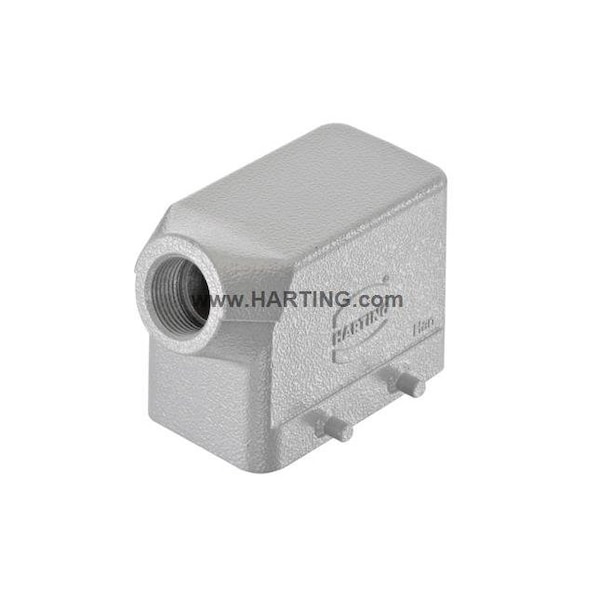

Capucha rectangular para conector M20, altura de 57 mm.
| Color | Gray |
|---|---|
| Series | Han(R) B |
| Height | 57 mm |
| Width | 57.2 mm |
| Application | Industrial Connectors |
| Length | 72.6 mm |
| Item | M20 Rectangular Connector Hood |
| Material | Aluminium |
| Seal Material | NBR |
| Maximum Operating Temperature | 125 deg C |
| Cable Entry Thread Size | M20 |
| Product Type | Hood |
| Entry Location | Side |
| Number of Entries | 1 |
| Minimum Operating Temperature | -40 deg C |
| Housing/Hood Size Designation | 10 B |
| Housing Color | Gray |
| Locking Type | Dual Lever |
| Housing/Hood Material | Aluminum Die-Cast |
| Sub-Category | Hoods/Housings |
| Standards | California Proposition 65, CE Certified, China RoHS, CSA-C22.2 No. 18.3 QCRV7.E479780, DNV GL, ELV Compliant, RoHS Complaint, UL 514B QCRV.E479780 |
| IP Rating | IP67, IP65, IP66 |
| Finish | Powder Coated |
| Max. Temp. | 125 deg C |
| Package Quantity | 1 |
