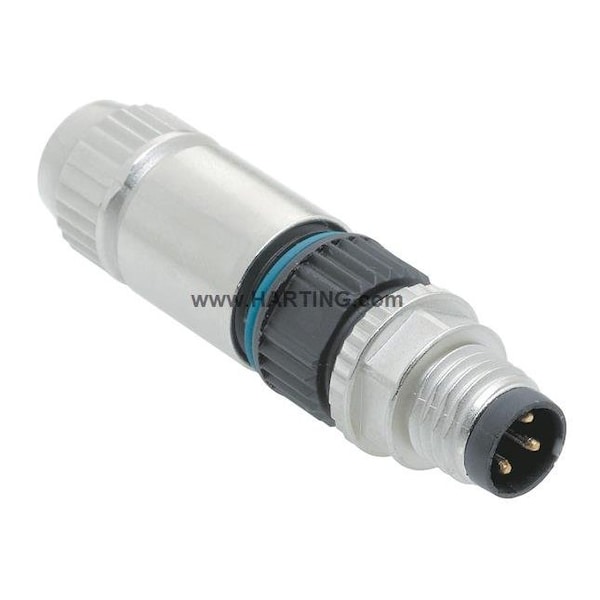

M8 Circular Connector, 3 Poles, 4 A
| Style - Connector | Straight |
|---|---|
| Material | Polyamide; Zinc Die-Cast |
| Item | M8 Circular Connector |
| Cable Opening Min. | 2.5 mm |
| Standards | California Proposition 65, CSA Certified, ELV Compliant, IEC 61076-2-104, REACH SVHC, RoHS Complaint, UL Listed |
| Cable Opening Max. | 5.1 mm |
| Type | Male |
| Conductor Cross Section Size | 0.34 sq mm |
| Maximum Operating Temperature | 85 deg C |
| Coding | A |
| IP Rating | IP67 |
| Includes Nut | Yes |
| Maximum Contact Resistance | 10 megaohm |
| Voltage Rating | 32 V |
| Mounting Style | Male Thread |
| Connector Body Type | Pin |
| Insulation Resistance | Greater than 1,000 Megaohm |
| Connector Orientation | Straight |
| Thread Size | M8 |
| Cable Outside Diameter | 5.1 mm |
| Application | DC Power, Gigabit Internet, Sensors, Signal |
| Minimum Operating Temperature | -40 deg C |
| Number of Contacts | 3 Pin |
| Locking Style | Screw Connection |
| Nominal Current | 4 A |
| Housing Material | Zinc Die-Cast |
| Number of Poles | 3 |
| Connection Type | Gold-Plated Contacts |
| Shielded | No |
| Minimum Mating Cycles | 100 |
| Connector Mating Size | M8x1 |
| Connector Type | Male M8 Ctr |
| Application/Rating - IEC | IP 65/67 |
| Cable Range | 2.5-5.1mm (0.09-0.20") OD |
| Amps | 4A |
| Keyway | Single |
| Poles | 3-Pole |
| Package Quantity | 1 |
