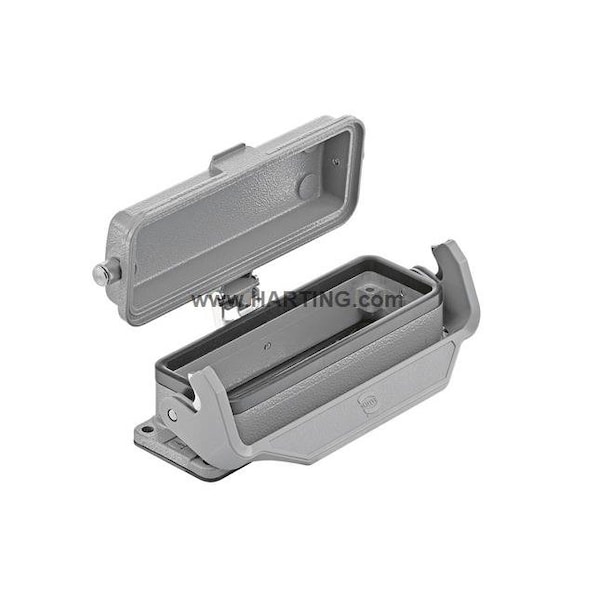

Carcasa rectangular para conector, 140 mm de largo.
| Color | Gray |
|---|---|
| Series | Han(R) B |
| Height | 28.9 mm |
| Width | 92.7 mm |
| Application | Industrial Connectors |
| Length | 140 mm |
| Material | Aluminium |
| Item | Rectangular Connector Housing |
| Maximum Operating Temperature | 125 deg C |
| Housing/Hood Material | Aluminum Die-Cast |
| Minimum Operating Temperature | -40 deg C |
| Levers and Bolts Material | Polycarbonate; Stainless Steel |
| Locking Type | Single Lever |
| Seal Material | NBR |
| Housing/Hood Size Designation | 24 B |
| Product Type | Housing |
| Housing Color | Gray |
| IP Rating | IP65 |
| Features | With Metal Cover |
| Finish | Powder Coated |
| Max. Temp. | 125 deg C |
| Sub-Category | Hoods/Housings |
| Standards | California Proposition 65, CE Certified, China RoHS, CSA-C22.2 No. 18.3 QCRV7.E479780, DNV GL, ELV Compliant, REACH SVHC, RoHS Complaint, UL 514B QCRV.E479780 |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 1 |
