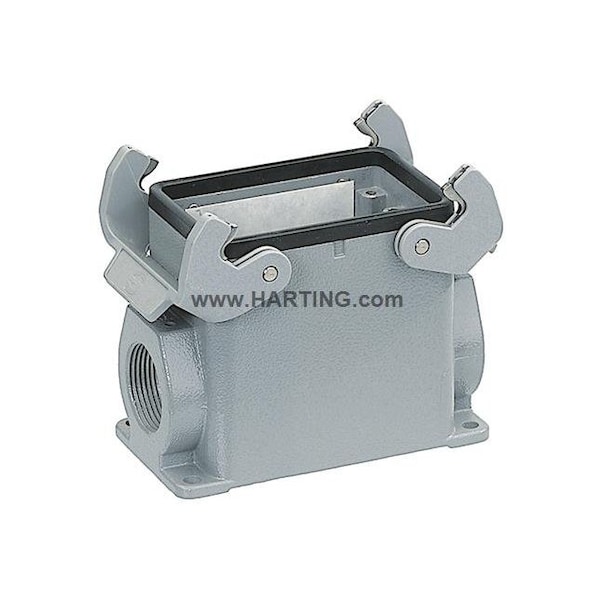

Carcaza de conector rectangular, 81.8 mm de altura
| Color | Gray |
|---|---|
| Series | Han(R) A |
| Height | 81.8 mm |
| Width | 57 mm |
| Application | Industrial |
| Length | 114.1 mm |
| Item | M32 Rectangular Connector Housing |
| Material | Aluminium |
| Minimum Operating Temperature | -40 deg C |
| Product Type | Housing |
| Housing Color | Gray |
| Maximum Operating Temperature | 125 deg C |
| Levers and Bolts Material | Polycarbonate; Stainless Steel |
| Entry Location | Side |
| Housing/Hood Size Designation | 32 A |
| Locking Type | Dual Lever |
| Seal Material | NBR |
| Number of Entries | 1 |
| Housing/Hood Material | Aluminum Die-Cast |
| Cable Entry Thread Size | M32 |
| Finish | Powder Coated |
| Sub-Category | Hoods/Housings |
| IP Rating | IP65 |
| Max. Temp. | 125 deg C |
| Standards | California Proposition 65, CE Certified, China RoHS, CSA-C22.2 No. 18.3 QCRV7.E479780, DNV GL, ELV Compliant, REACH SVHC, RoHS Complaint, UL 514B QCRV.E479780 |
| Flammability Rating | UL 94 V-0 |
| Material, Attachments | Zinc Plated Steel |
| Cover Provision | Without Cover |
| Entry Position - Quantity | Side (1) |
| Mounting Code-Series Size | A32 |
| Dimensions | 3.22 in x 1.81 in x 4.17 in (HxWxL) |
| Mounts To | Double Lever Base |
| Attachment Type | Double Lever |
| Material, Housing | Die Cast Aluminum |
| Entry Size | 0.75 in NPT |
| Package Quantity | 1 |
