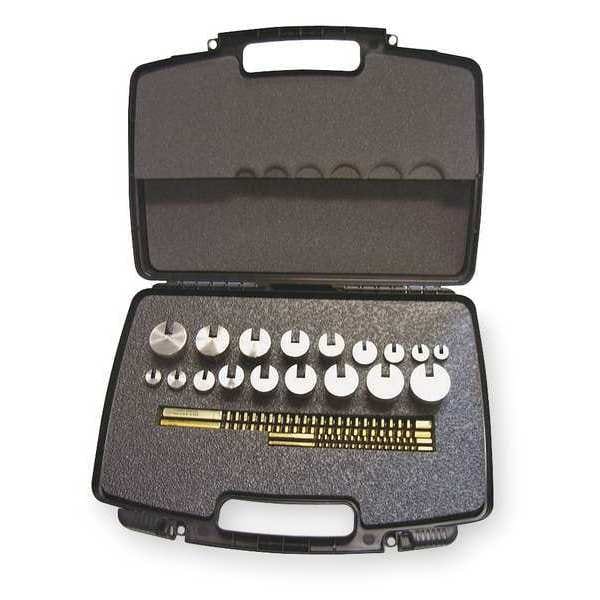

Keyway Broach Set, #C-10
| Measurement System | Fractional Inch |
|---|---|
| Broach Style | II, III |
| Keyway Width | 1/8 in, 3/16 in; 1/4 in; 3/8 in |
| Bushing Hole Dia. | 1/2 in, 9/16 in, 5/8 in, 11/16 in, 3/4 in, 13/16 in, 7/8 in, 15/16 in, 1 in, 1 1/16 in, 1 1/8 in, 1 3/16 in, 1 1/4 in, 1 5/16 in, 1 3/8 in, 1 7/16 in, 1 1/2 in, 1 9/16 in |
| Number Of Keyway Combinations | 36 |
| Number of Shims Required | 2 |
| Item | Keyway Broach Set |
| Drilling Tool Configuration | Set |
| Keyway Sizes | 1/8", 3/16", 1/4", 3/8" |
| Cut Profile | Keyway |
| Number of Pieces | 4 |
| Set Type | #C-10 |
| Includes | 4 Broaches, 18 Collared Bushings, Plastic Case |
| Material - Machining | High Speed Steel |
| Largest Broach Size | 3/8 in |
| Smallest Broach Size | 1/8 in |
| Primary Material Application | All Materials |
| Package Quantity | 1 |
