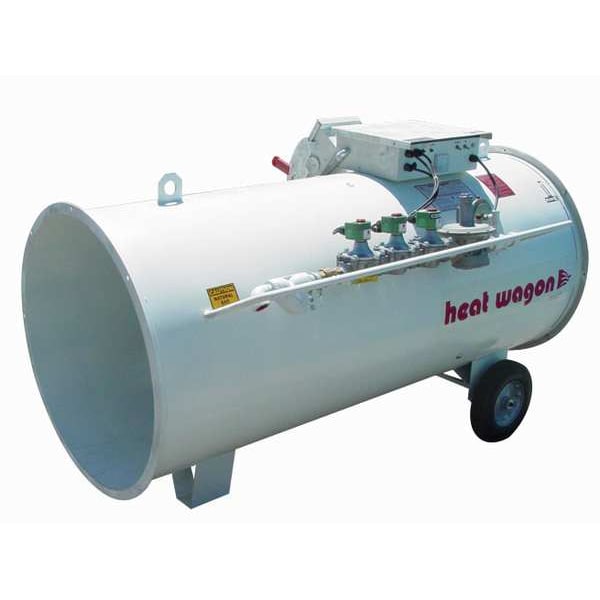

Direct Fired Heater, 3500000 BTU
| Air Flow | 16,000 cfm |
|---|---|
| Includes | Regulator, Thermostat |
| Ignition Type | Direct Spark |
| Heating Capacity Output | 3,500,000 BtuH |
| On/Off Switch Included | Yes |
| Fuel Type | Natural Gas |
| Item | Direct Fired Heater, 3,500,000 BTU |
| Fuel Consumption | 3,500 cfh |
| Overall Height | 44 in |
| Thermostat Included | Remote-Mounted |
| Automatic Safety Shut-Off Included | Yes |
| For Use Outdoors | Indoor, Outdoor |
| Manufacturers Warranty Length | 1 yr |
| Flame-Out Sensor Included | Yes |
| Features | Automatically Cycles the Heater High/Low, Fused Disconnect Switch, Low Housing Temperature, Protects Heater by Shutting Down if Unit is Being Overfired, Protects Heater by Shutting Down if Voltage is Too Low, Safe Fuel Shutdown if Combustion Air is Interrupted, Safe Monitoring of Combustion Easy Monitoring of Control Voltage to Ensure Trouble-Free Operation |
| Heating Method | Fan Forced |
| Air Temperature Rise | 200 deg F |
| Ignition Power Source | Electric |
| Heater Voltage | 480 V |
| Standards | ANSI A119.2(NFPA 501C), ANSI Z83.7a-1993, ANSI-Z21.11.2, CSA, NFPA-58 |
| NEMA Plug Configuration | Hardwired |
| Built-In Air Pressure Gauge Included | Yes |
| Firing Type | Direct-Fired |
| Overall Width | 41 in |
| Cord Length | Not Applicable |
| Amperage | 10 A |
| Overall Depth | 73 in |
| Heating Area | 175,000 sq ft |
| Housing Finish | Powder Coated |
| Housing Material | Steel |
| Thermal Overheat Protection | One-Time Thermal Fuse |
| Power Failure Indicator Included | Yes |
| Digital Temperature Readout Included | No |
| Tank Capacity | Not Applicable |
| Overall Dimensions - H x W x D | 44 in x 41 in x 73 in |
| Frequency | 60 Hz |
| Housing Color | White |
| Fuel Gauge Included | No |
| LED Diagnostics Included | No |
| For Use Indoors/Outdoors | Indoor, Outdoor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
