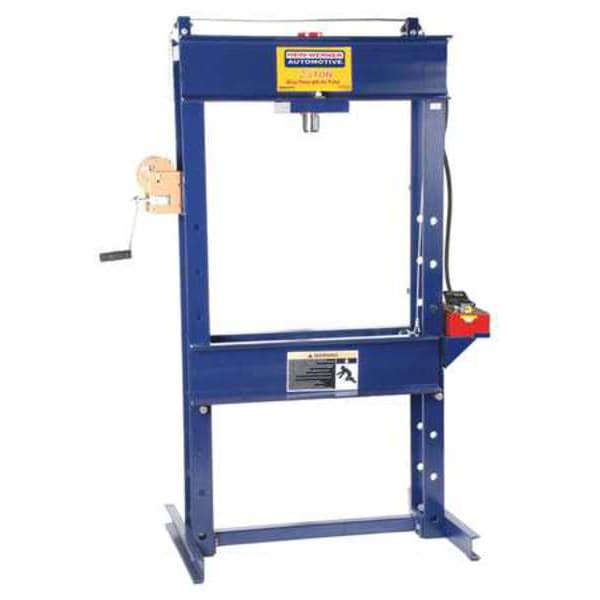

Hydraulic Press, 25 t, Air Pump, 71 In
| Frame Capacity | 25 ton |
|---|---|
| Frame Type | H-Frame |
| Cylinder Stroke | 6 in |
| Pump Type | Air |
| Base Length | 29-3/4 in |
| Base Width | 42-3/4 in |
| Overall Height | 70 in |
| Cylinder Type | Single Acting |
| Item | Hydraulic Press |
| Features | Adjustable 8 Positions;Welded Frame |
| Working Height | 5-1/2 to 47-1/2" |
| Pump | Mfr. No. PA1500 |
| Working Width | 29-3/4 in |
| Total Width | 42-3/4 in |
| Application | Bending, Bonding, Straightening |
| Ram Travel | 6 in |
| Reservoir Capacity | 91.5 cu in |
| Bed Height | Adjustable |
| Hose Length | 6 ft |
| Cylinder | Mfr. No. H2506 |
| Includes | Hand Winch |
| Height with Screw Extension | No Extension Screw |
| Total Height | 71 in |
| Overall Length | 70 in |
| Pressure | 25 tons |
| Adjustable Bed | Adjustable |
| Overall Width | 42-3/4 in |
| Stroke | 6 in |
| Phase | Not Applicable |
| Voltage | Not Applicable |
| Operating Pressure | 25 Tonf |
| Overall Depth | 30 in |
| Motor Speed - Maximum | Not Applicable |
| Ram-to-Table Distance - Maximum | 47-1/2 in |
| Base Depth | 29-3/4 in |
| Operation | Air |
| Hydraulic Hose Length | 6 ft |
| Number of Bed Positions | 8 |
| Press Bed Depth | 11-1/2 in |
| Current | Not Applicable |
| Ram-to-Table Distance - Minimum | 5-1/2 in |
| Manufacturer Warranty | 2 yr Limited |
| Cylinder Model Number | H2506 |
| Capacity | 25 ton |
| Press Bed Width | 29-3/4 in |
| Pump Model Number | PA1500 |
| Standards | OSHA, ANSI Z87.1 |
| Horsepower | Not Applicable |
| Frame Material | Steel |
| Package Quantity | 1 |
