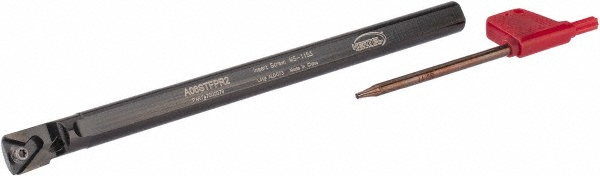

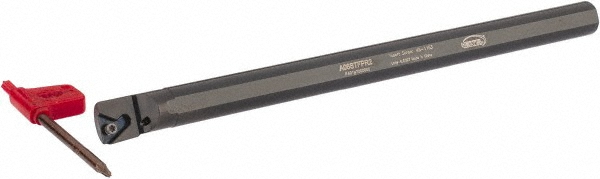

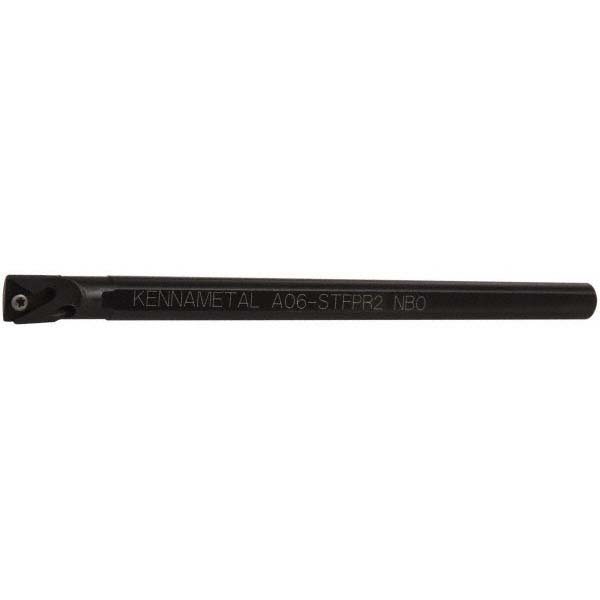

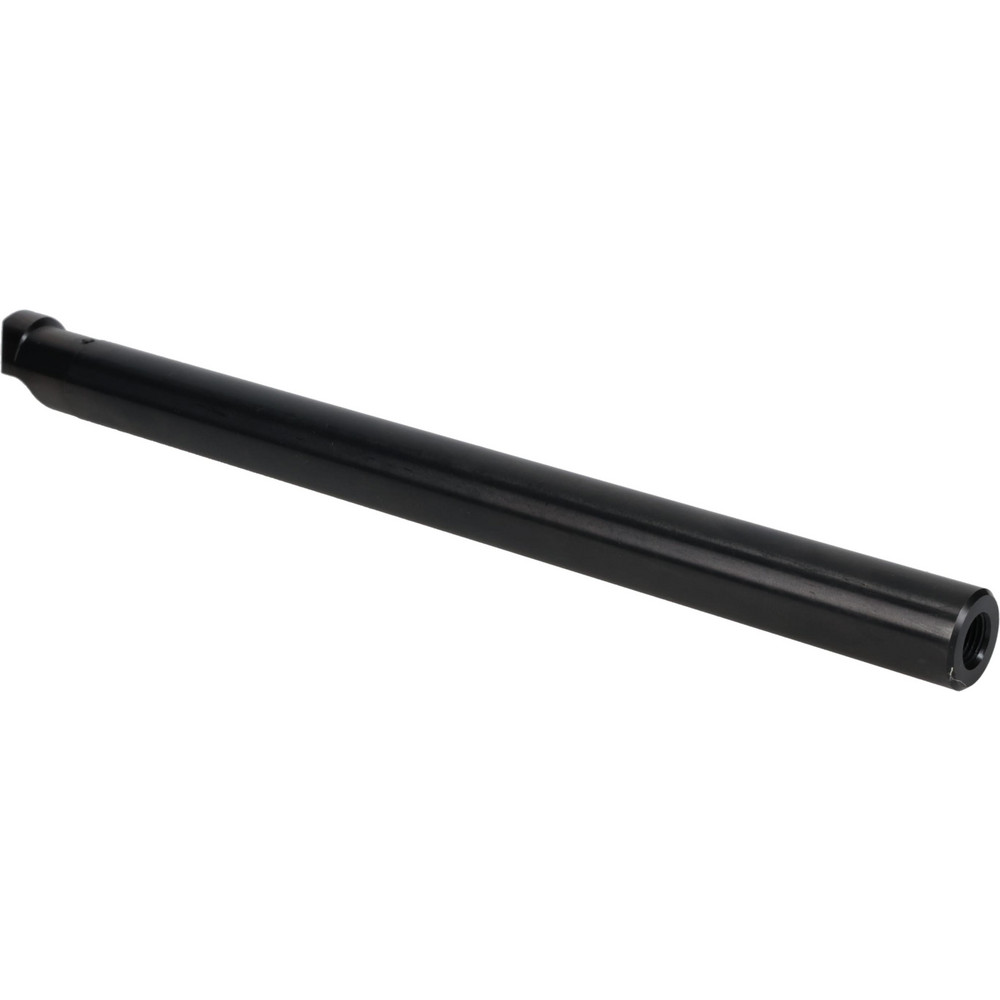

6.0000" OAL, Screw, Uses TP.. 21.51 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.4800 |
|---|---|
| Toolholder Style | A-STFP |
| Tool Material | Steel |
| Insert Compatibility | TP.. 21.51 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2500 |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Hole Diameter (Decimal Inch) | 0.1250 |
| Coolant Through | Yes |
| Country of Origin | China |
| MSC Number | MSC# 05695937 |
