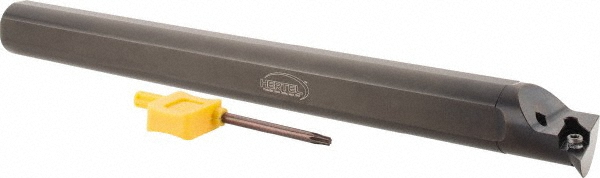

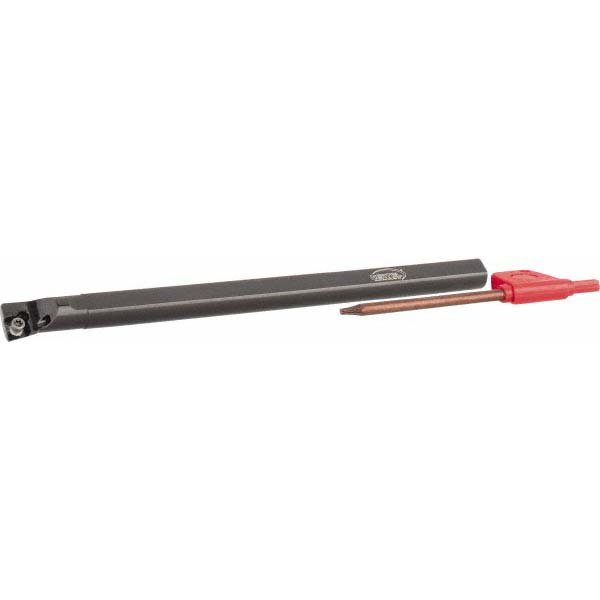

254.00 mm OAL, Screw, Uses DC.. 32.52 Inserts
| Minimum Bore Diameter (mm) | 24.89 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.9800 |
| Maximum Bore Depth (Decimal Inch) | 2.2500 |
| Maximum Bore Depth (Inch) | 2-1/4 |
| Maximum Bore Depth (mm) | 57.15 |
| Toolholder Style | A12SSDUCR3 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3750 |
| Tool Material | Steel |

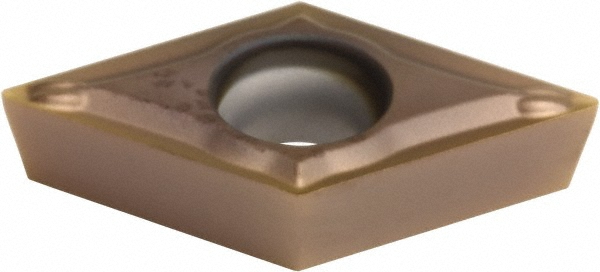

| Insert Compatibility | DC.. 32.52 |
| Shank Diameter (mm) | 19.05 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Insert Holding Method | Screw |
| Series | A |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5620 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | China |
| undefined | undefined |
| MSC Number | MSC# 36018075 |
