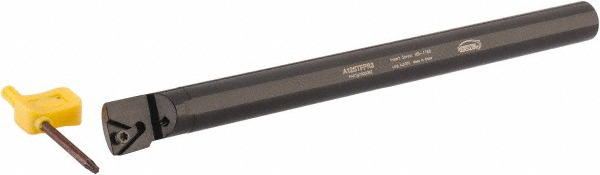

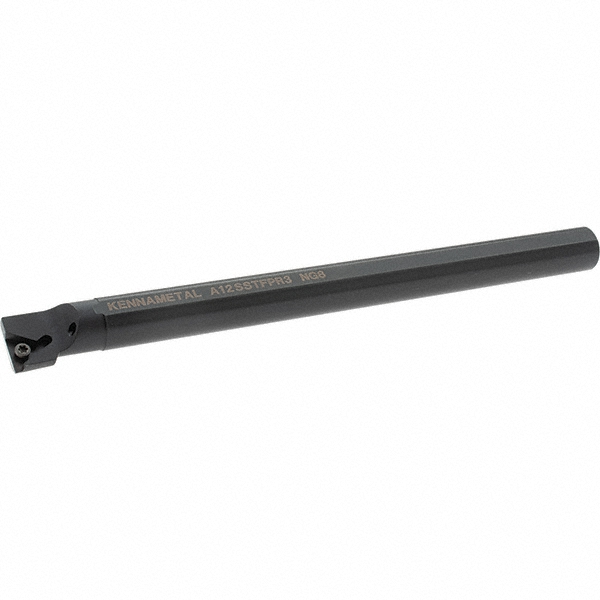

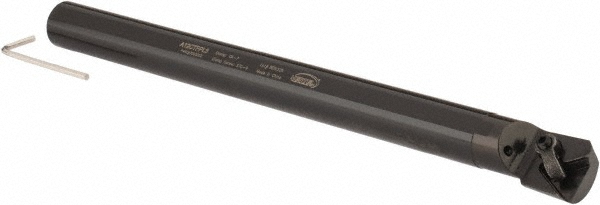

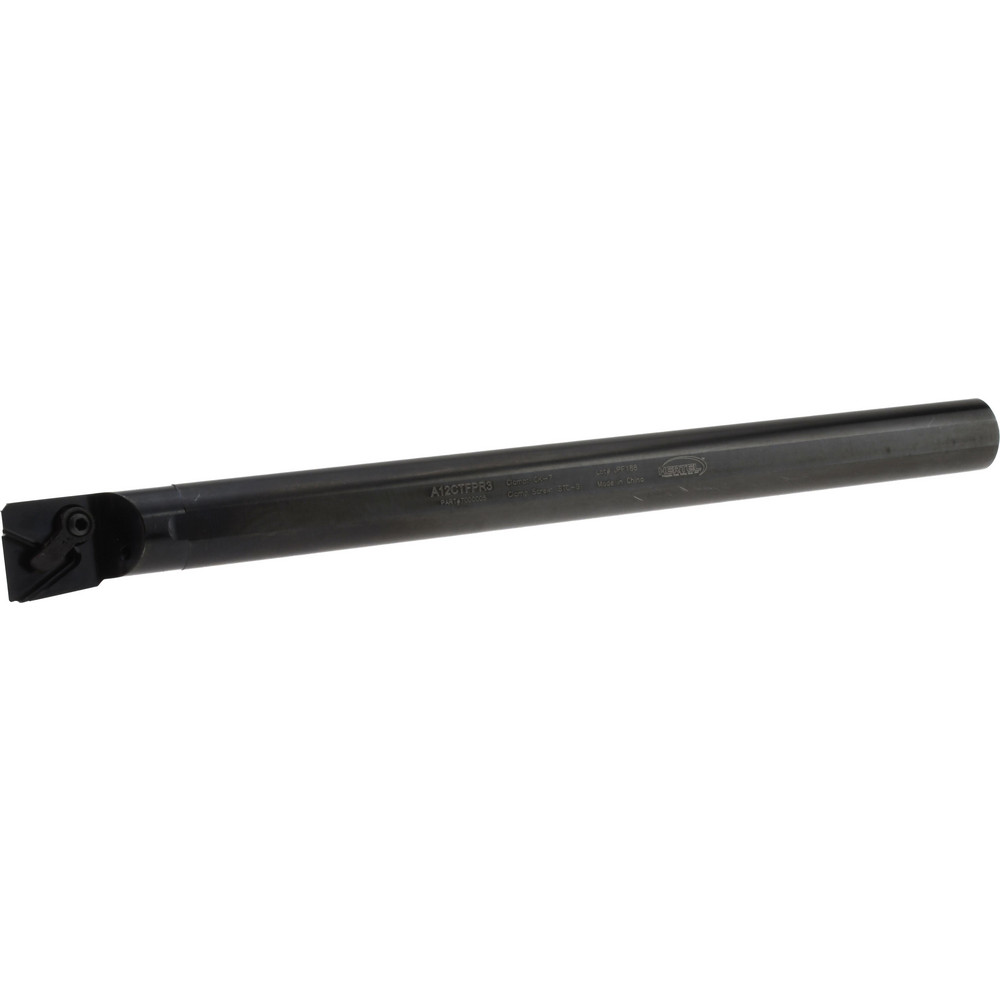

10.0000" OAL, Screw, Uses TP.. 32.52 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.9300 |
|---|---|
| Toolholder Style | A-STFP |
| Tool Material | Steel |

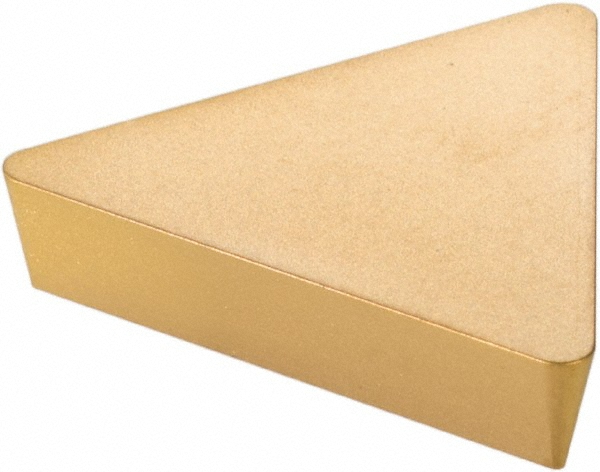

| Insert Compatibility | TP.. 32.52 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (Inch) | 10 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 5/32 |
| Coolant Through | Yes |
| Country of Origin | China |
| MSC Number | MSC# 05695960 |
