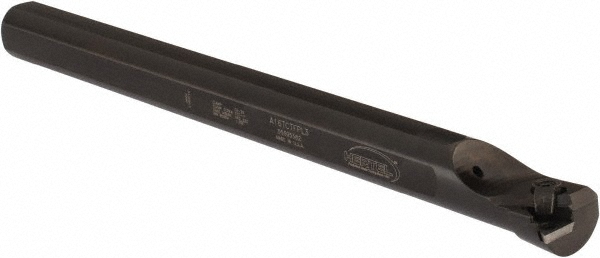

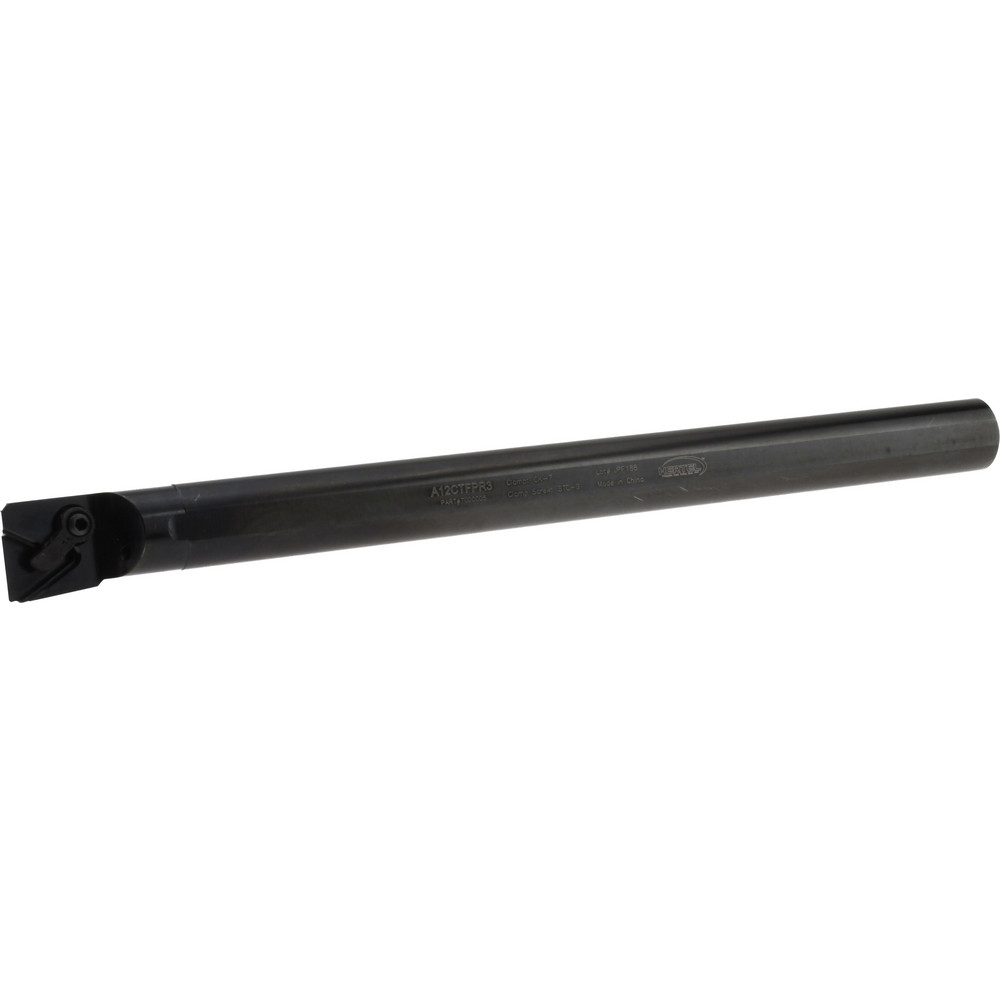

12.0000" OAL, Clamp, Uses TP.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.2000 |
|---|---|
| Toolholder Style | A-CTFP |
| Tool Material | Steel |
| Insert Compatibility | TP.. |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (Inch) | 12 |
| Insert Holding Method | Clamp |
| Rake | Positive |
| Rake Angle | 5.00 |
| Lead Angle | 0 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Through | Yes |
| Country of Origin | China |
| MSC Number | MSC# 05695382 |
