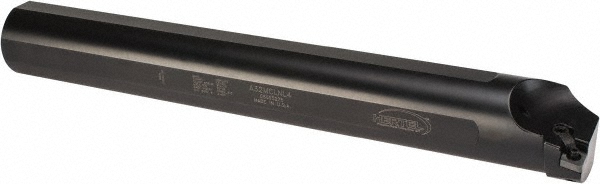

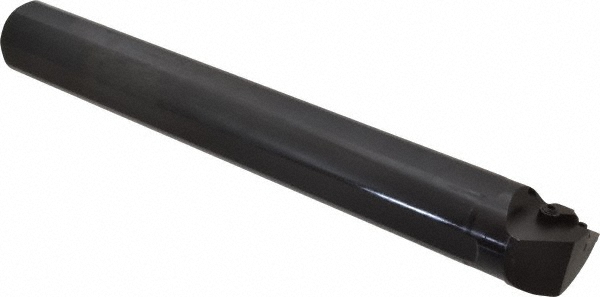

Screw & Clamp, Uses CN.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 2.4000 |
|---|---|
| Toolholder Style | A-MCLN |
| Tool Material | Steel |
| Insert Compatibility | CN.. |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 2 |
| Overall Length (Inch) | 16 |
| Insert Holding Method | Screw; Clamp |
| Rake | Negative |
| Rake Angle | 5.00 |
| Lead Angle | -5 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2810 |
| Center to Cutting Edge (Decimal Inch) | 1.2810 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
| Country of Origin | China |
| MSC Number | MSC# 05695275 |
