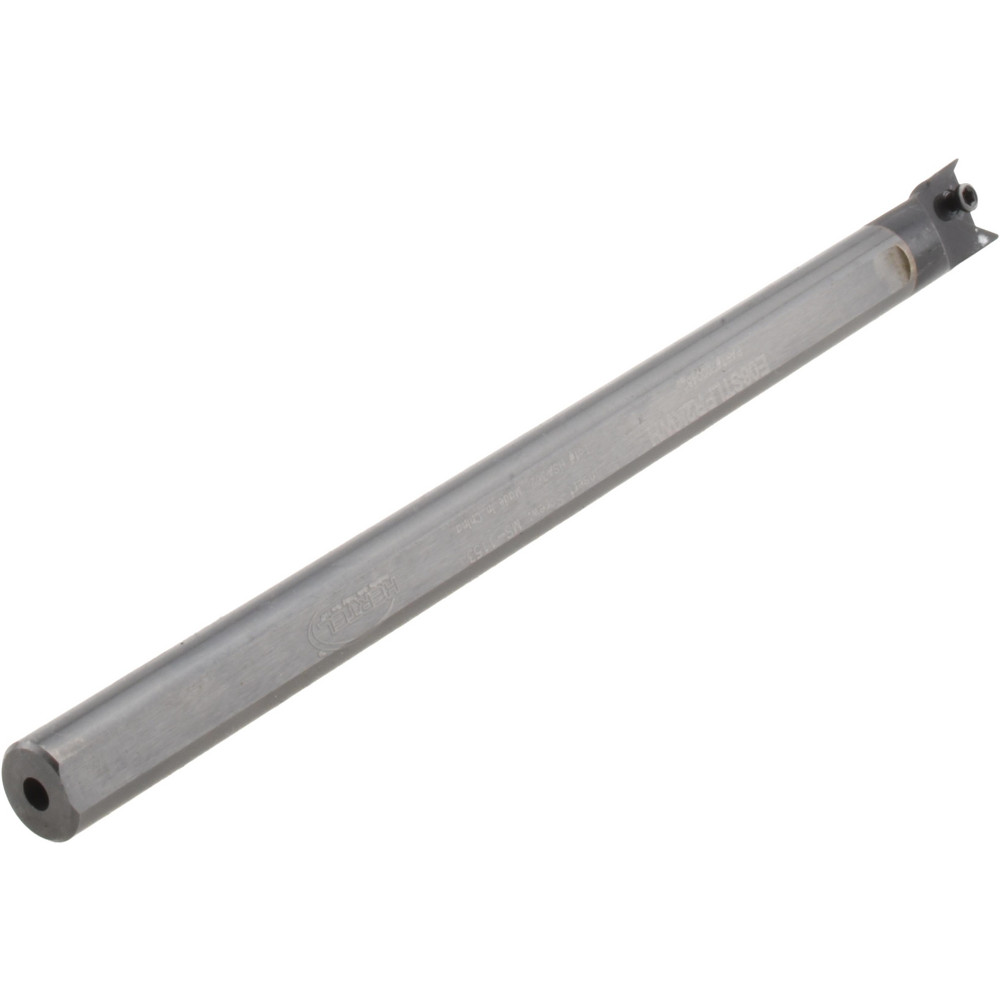

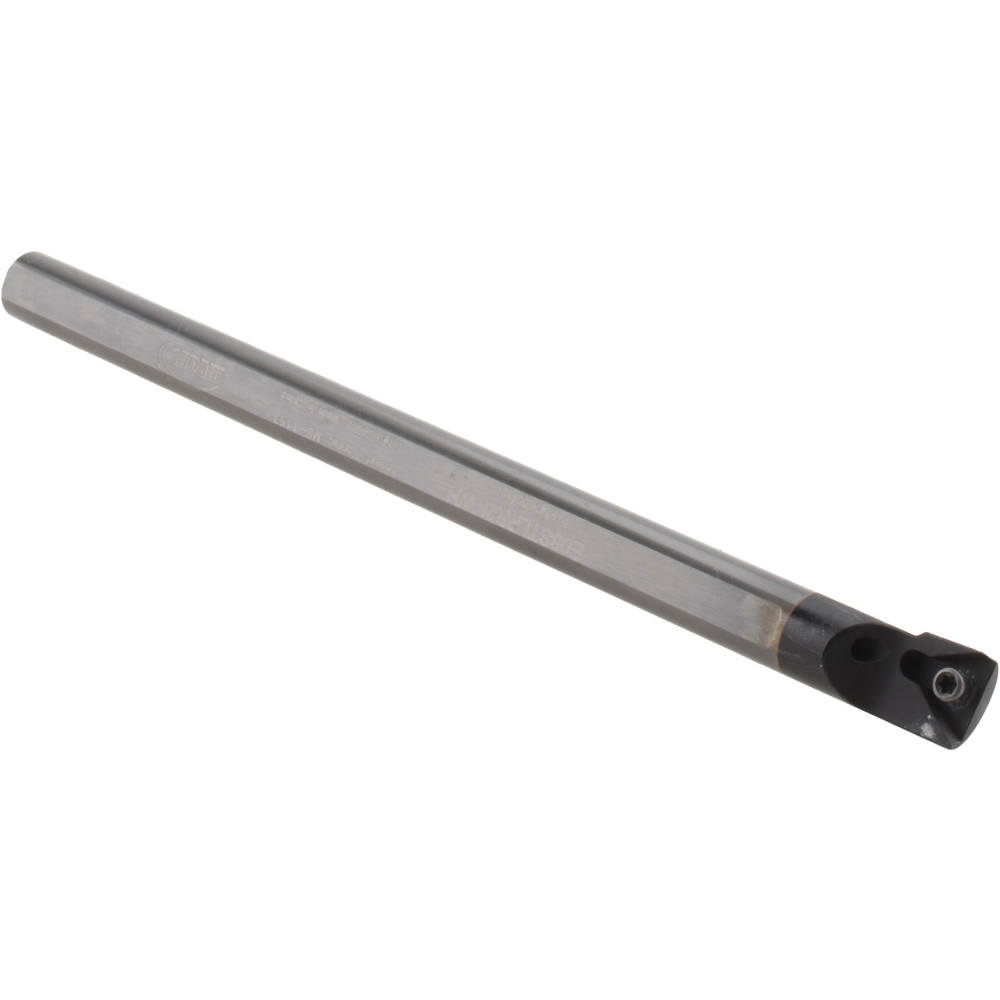

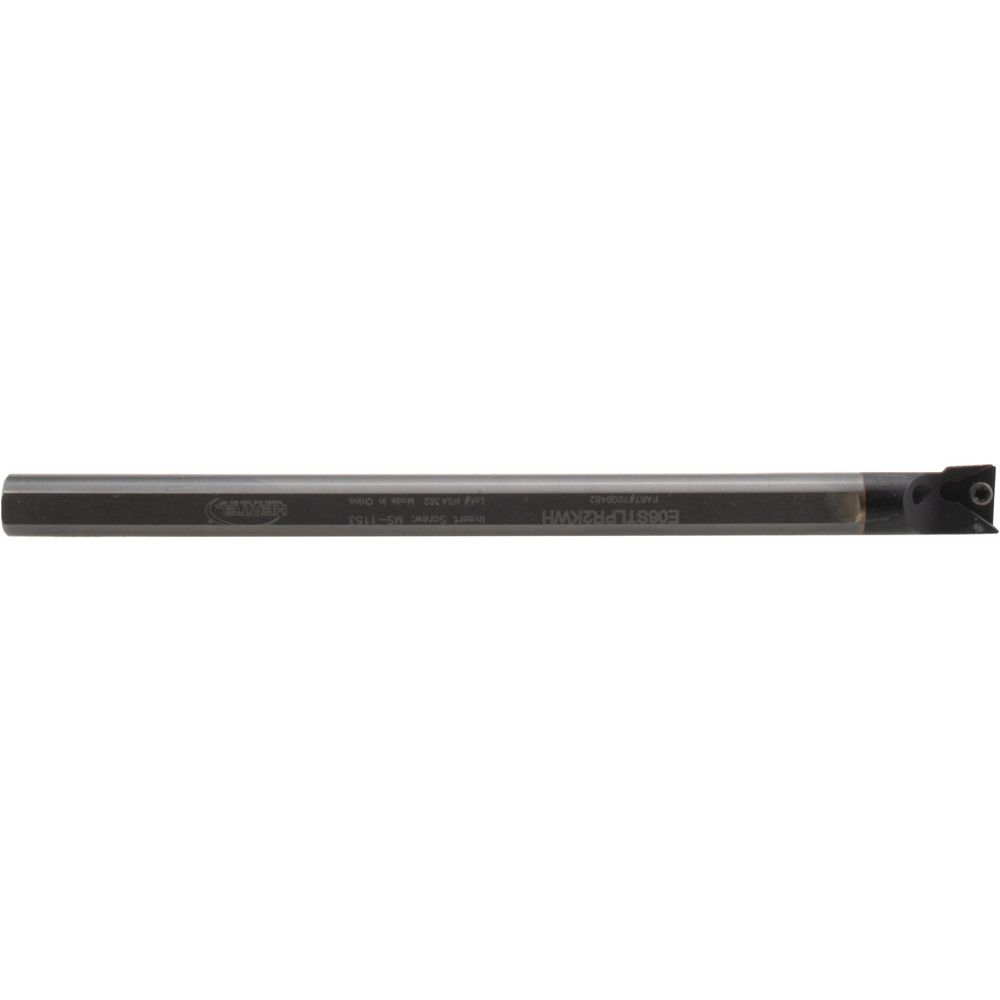

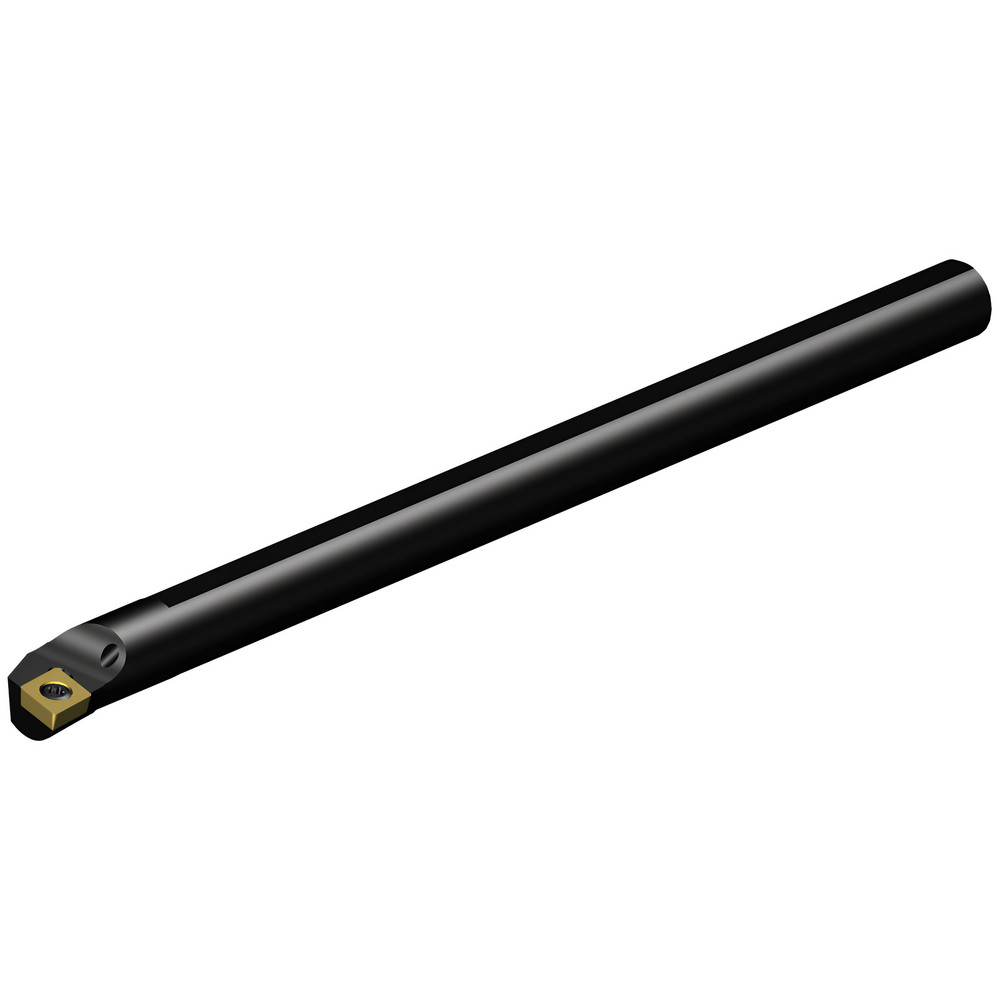

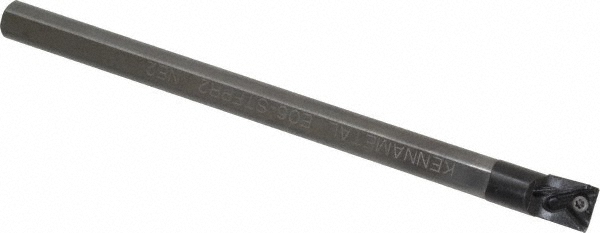

152.40 mm OAL, Screw, Uses TP.. 21.51 Inserts
| Minimum Bore Diameter (mm) | 12.19 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.4800 |
| Maximum Bore Depth (Decimal Inch) | 2.2500 |
| Maximum Bore Depth (Inch) | 2-1/4 |
| Maximum Bore Depth (mm) | 57.15 |
| Toolholder Style | E06STLPR2 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.2500 |
| Tool Material | Solid Carbide |
| Insert Compatibility | TP.. 21.51 |
| Shank Diameter (mm) | 9.53 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Insert Holding Method | Screw |
| Series | E |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2500 |
| UNSPSC Code | 23241601 |
| Coolant Hole Diameter (Decimal Inch) | 0.1250 |
| Coolant Through | Yes |
| Country of Origin | China |
| undefined | undefined |
| MSC Number | MSC# 36018257 |
