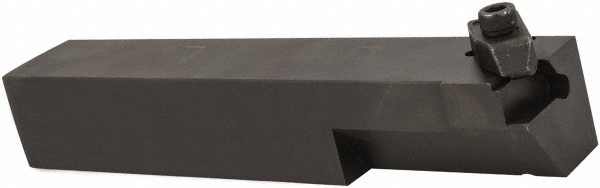

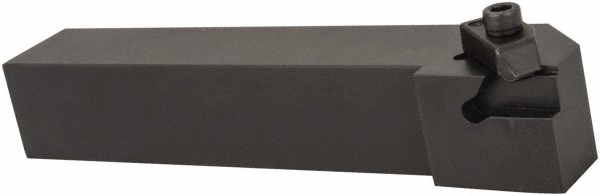

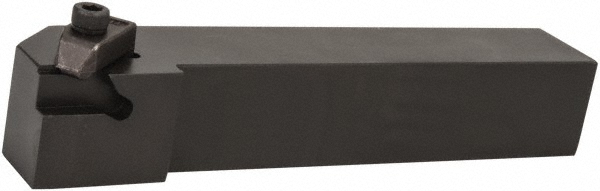

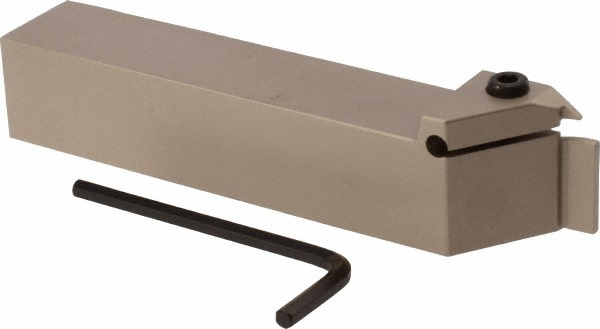

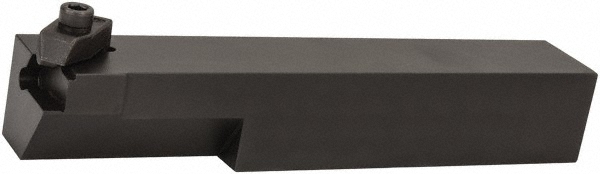

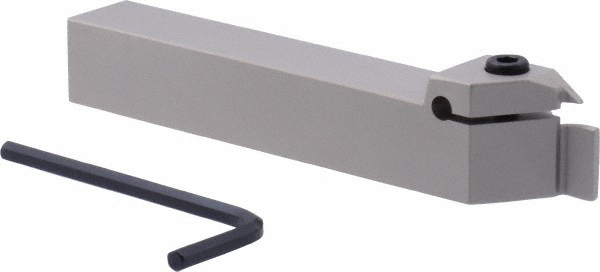

7.36 mm Max Depth of Cut, 1 x 1" Shank
| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2900 |
| Maximum Depth of Cut (mm) | 7.36 |
| Minimum Groove Width (Decimal Inch) | 0.2550 |
| Toolholder Style | IE |
| Insert Holding Method | Clamp |
| Insert Compatibility | I_4R |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Hertel Notch |
| Shank Length (Decimal Inch) | 6.0000 |
| Shank Length (Inch) | 6 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3750 |
| Head Length (Decimal Inch) | 1.26 |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| MSC/Manufacturer Number | IEL164D |
| Coolant Through | No |
| undefined | undefined |
| MSC Number | MSC# 58394735 |
