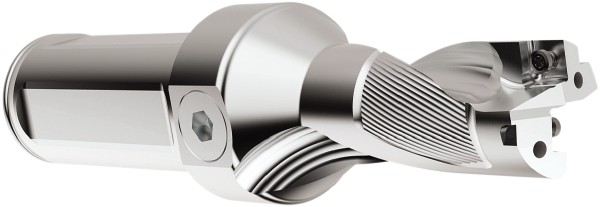

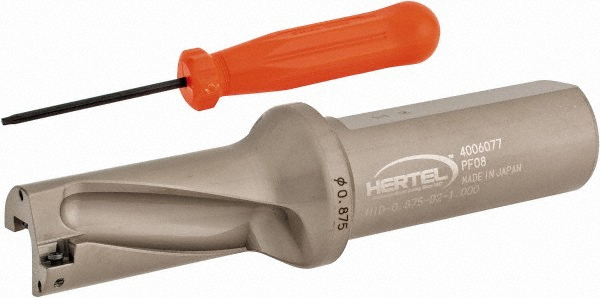

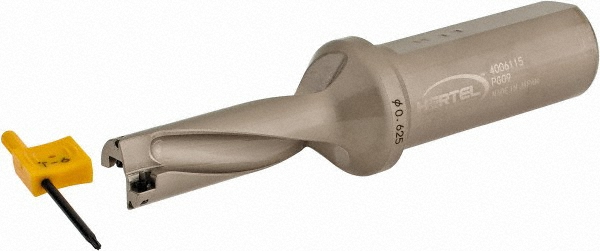

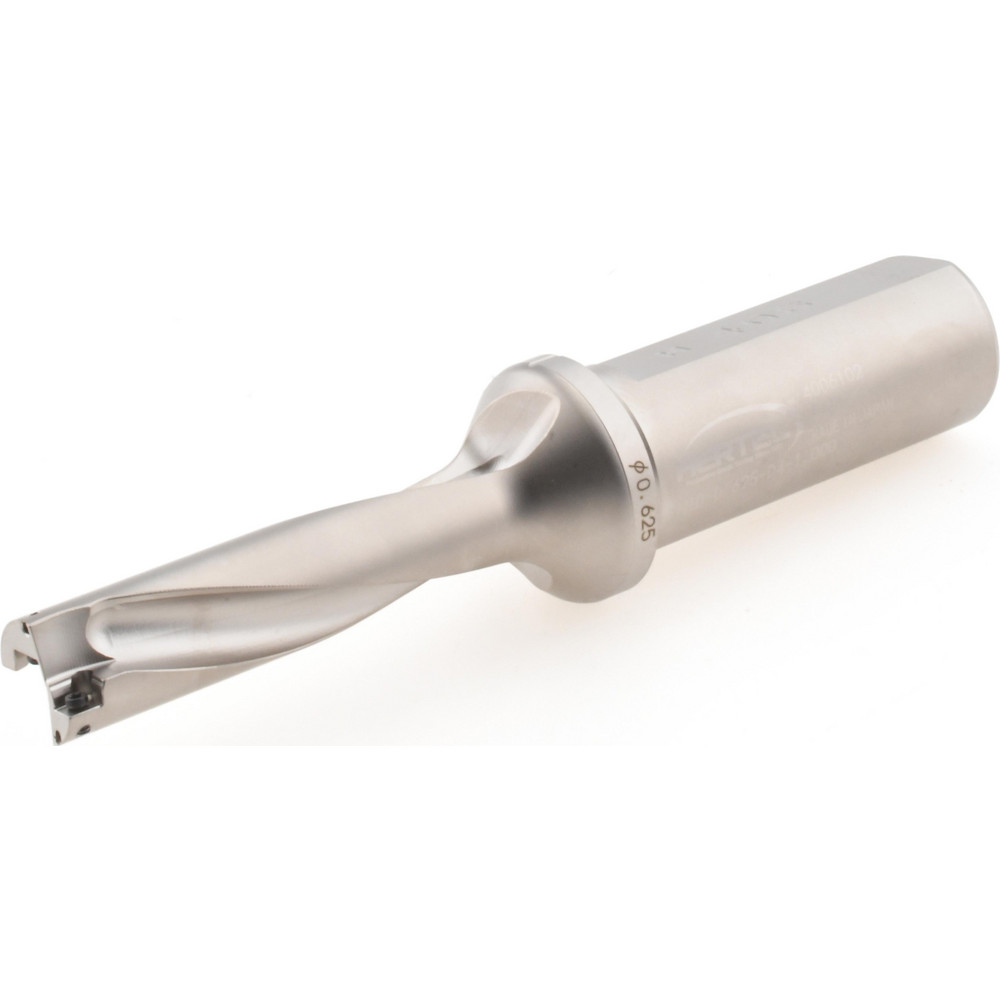

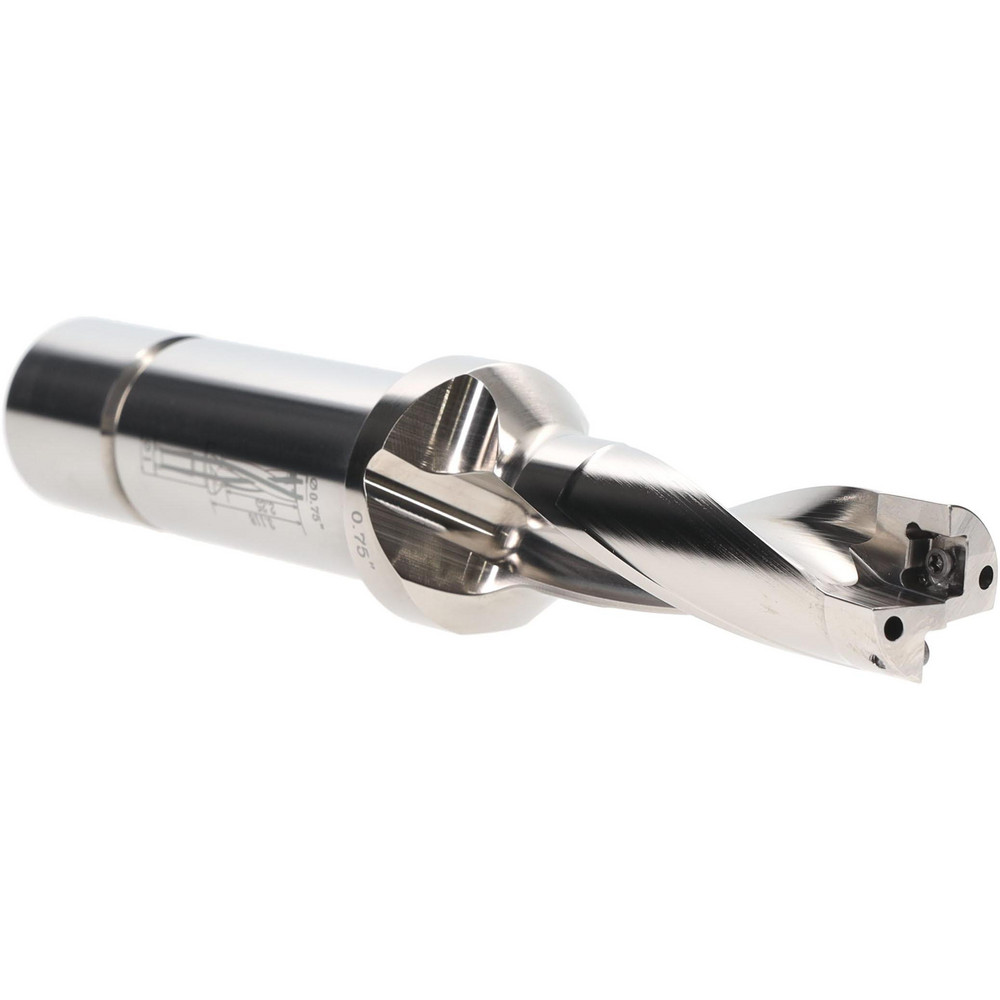

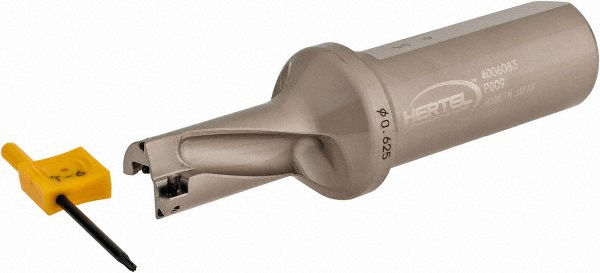

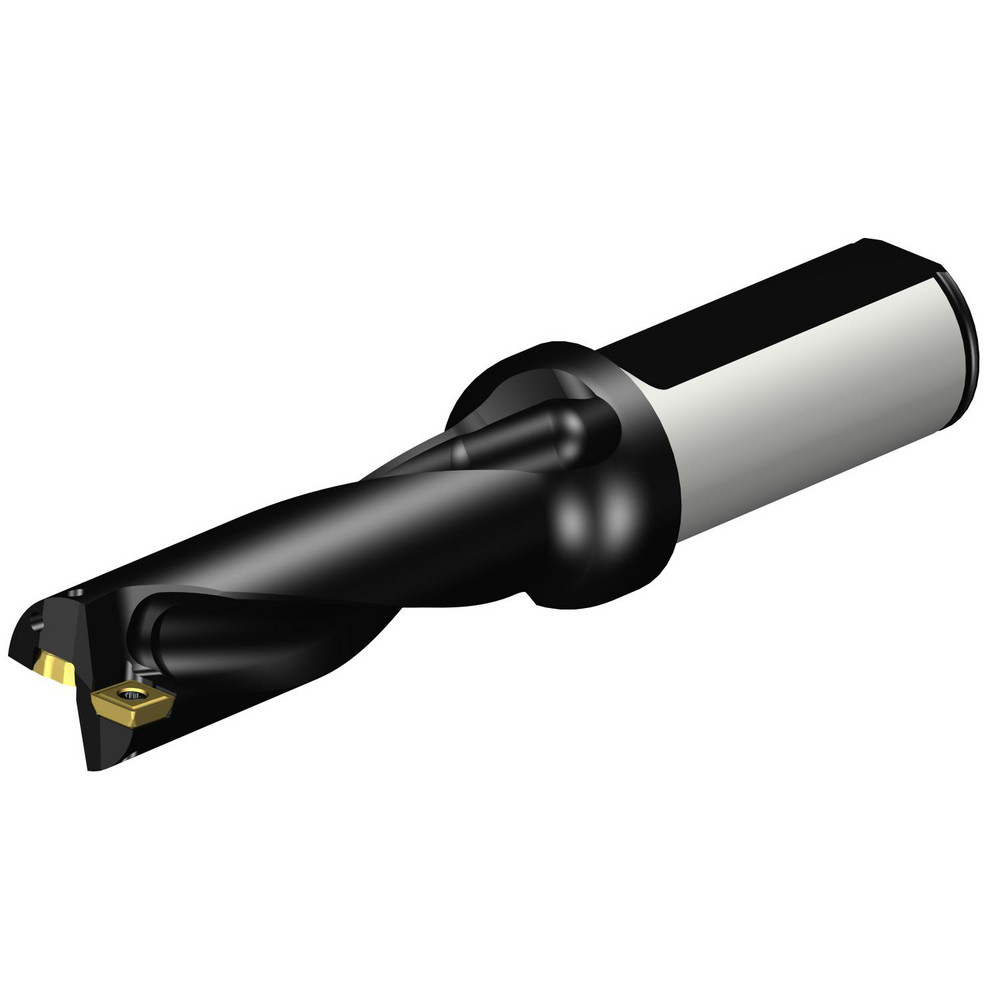

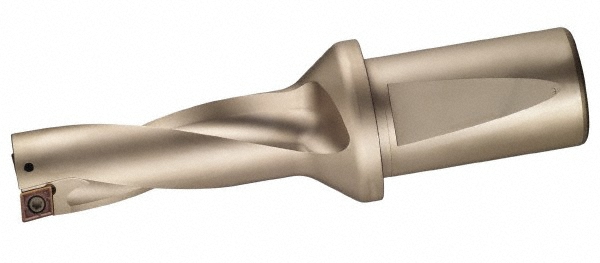

Straight-Cylindrical Shank
| Compatible Drill Style | HID |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.6440 |
| Maximum Drill Depth (Inch) | 1-1/4 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 2xD |
| Flute Length (Decimal Inch) | 1.3680 |
| Flute Length (mm) | 34.75 |
| Body Length (mm) | 113.26 |
| Body Length (Decimal Inch) | 4.4590 |
| Shank Length (Decimal Inch) | 2.5000 |
| Shank Length (mm) | 63.50 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | HPMT052804-GP |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Collar Diameter (mm) | 32.00 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 39270376 |
