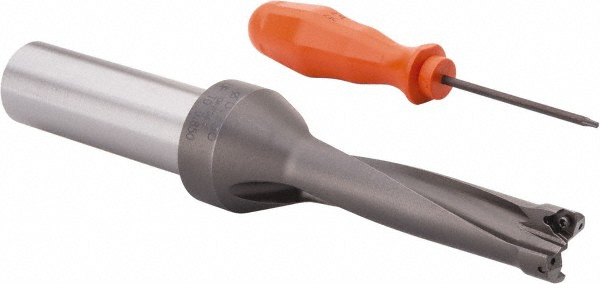

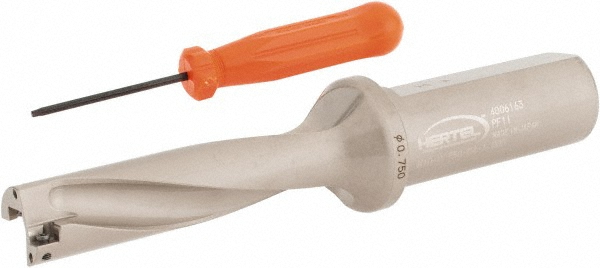

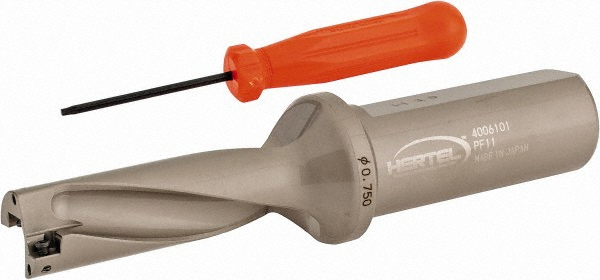

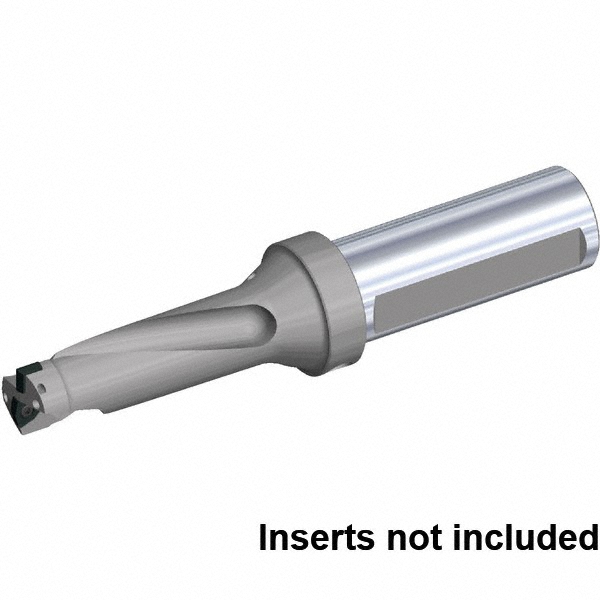

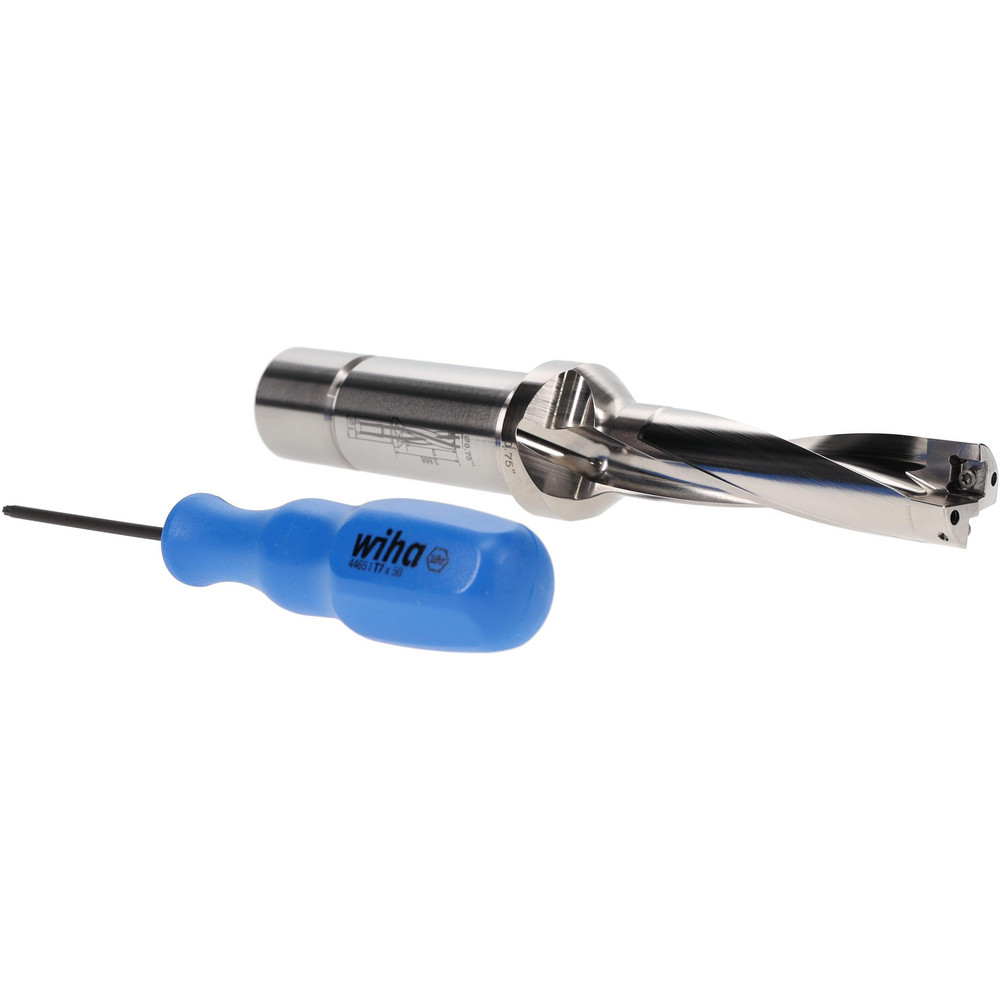

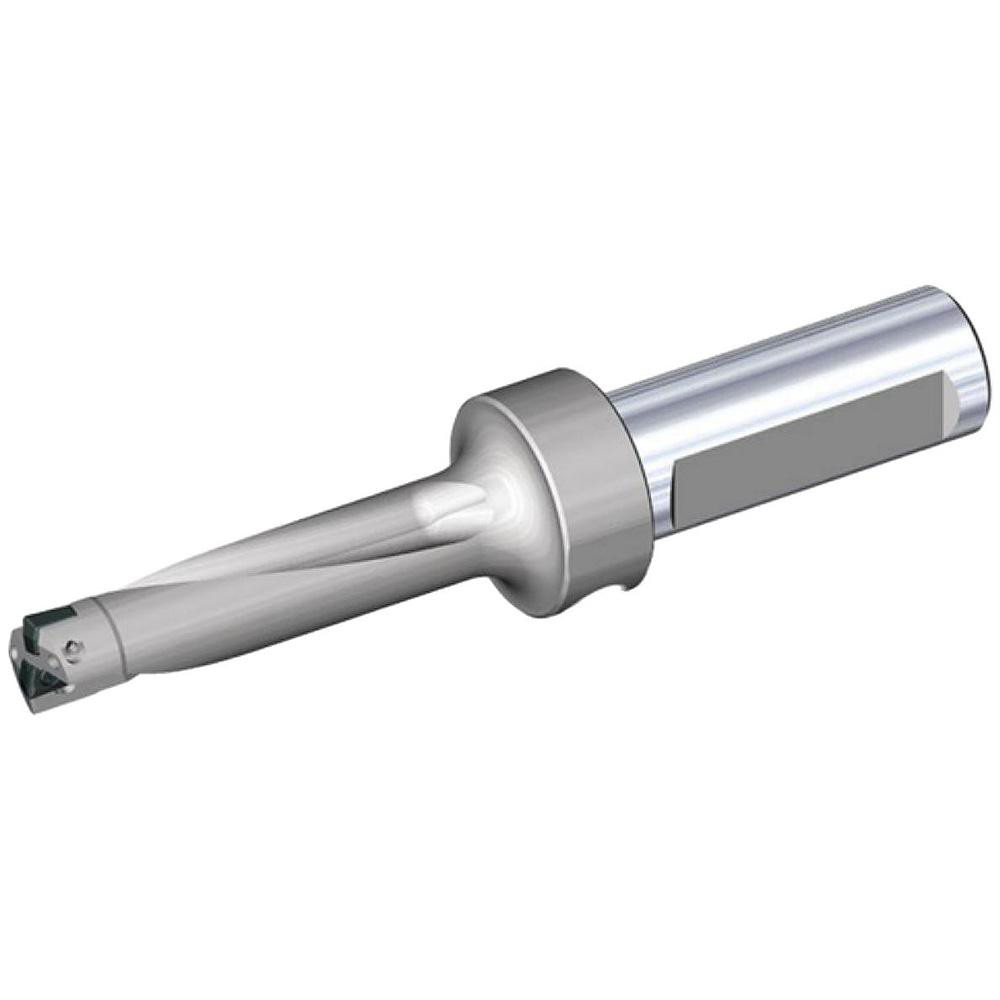

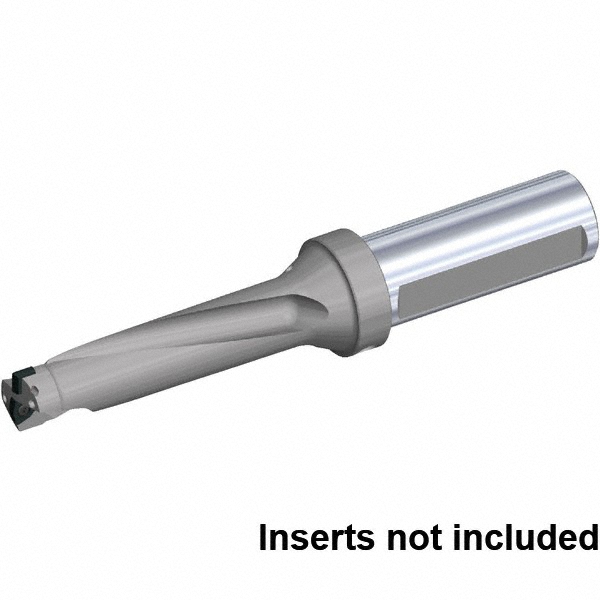

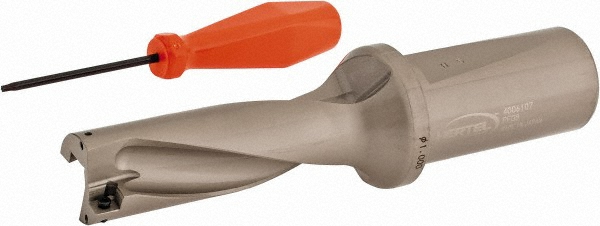

Straight-Cylindrical Shank
| Compatible Drill Style | HID |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.7730 |
| Maximum Drill Depth (Inch) | 3 |
| Maximum Drill Depth (Decimal Inch) | 3.0000 |
| Maximum Drill Depth (mm) | 76.20 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 4xD |
| Flute Length (Decimal Inch) | 3.1180 |
| Flute Length (mm) | 79.20 |
| Body Length (mm) | 157.71 |
| Body Length (Decimal Inch) | 6.2090 |
| Shank Length (Decimal Inch) | 2.5000 |
| Shank Length (mm) | 63.50 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | HPMT063306-GP |
| Collar Diameter (Decimal Inch) | 1.2990 |
| Collar Diameter (mm) | 32.99 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 39270012 |
