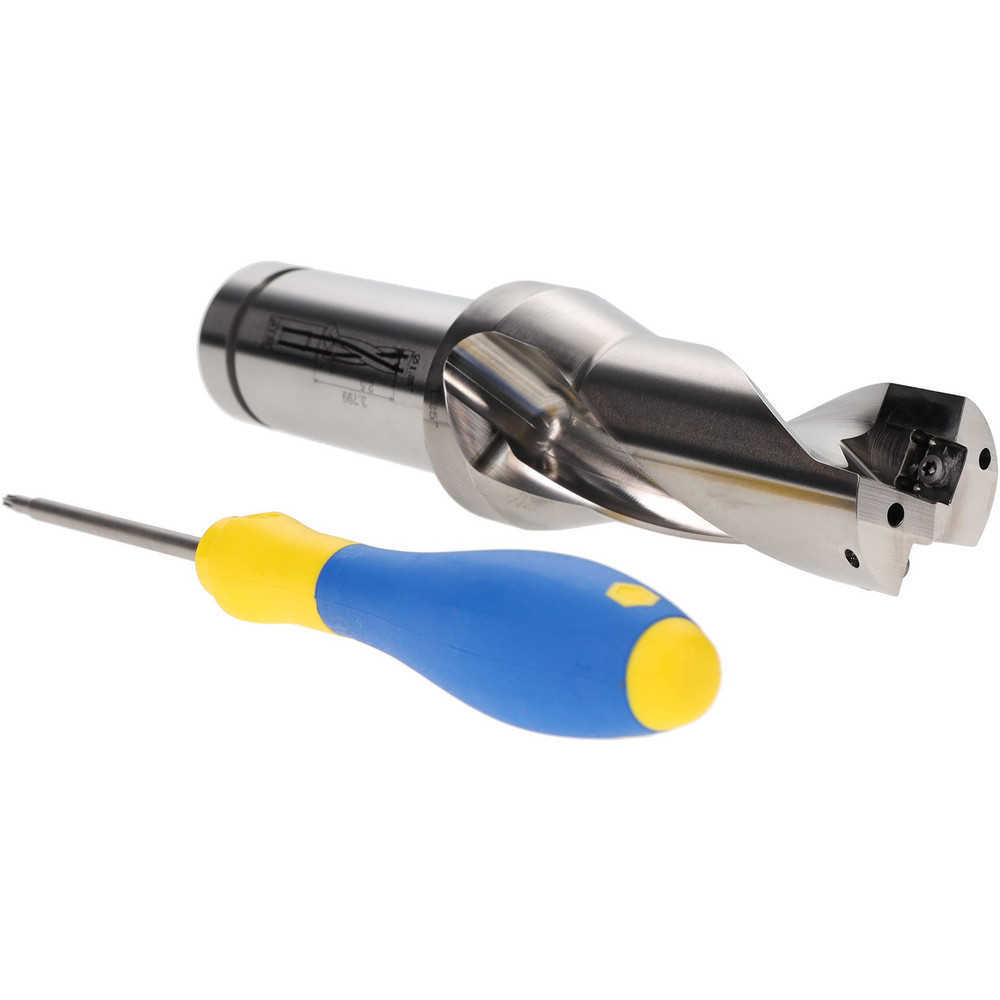

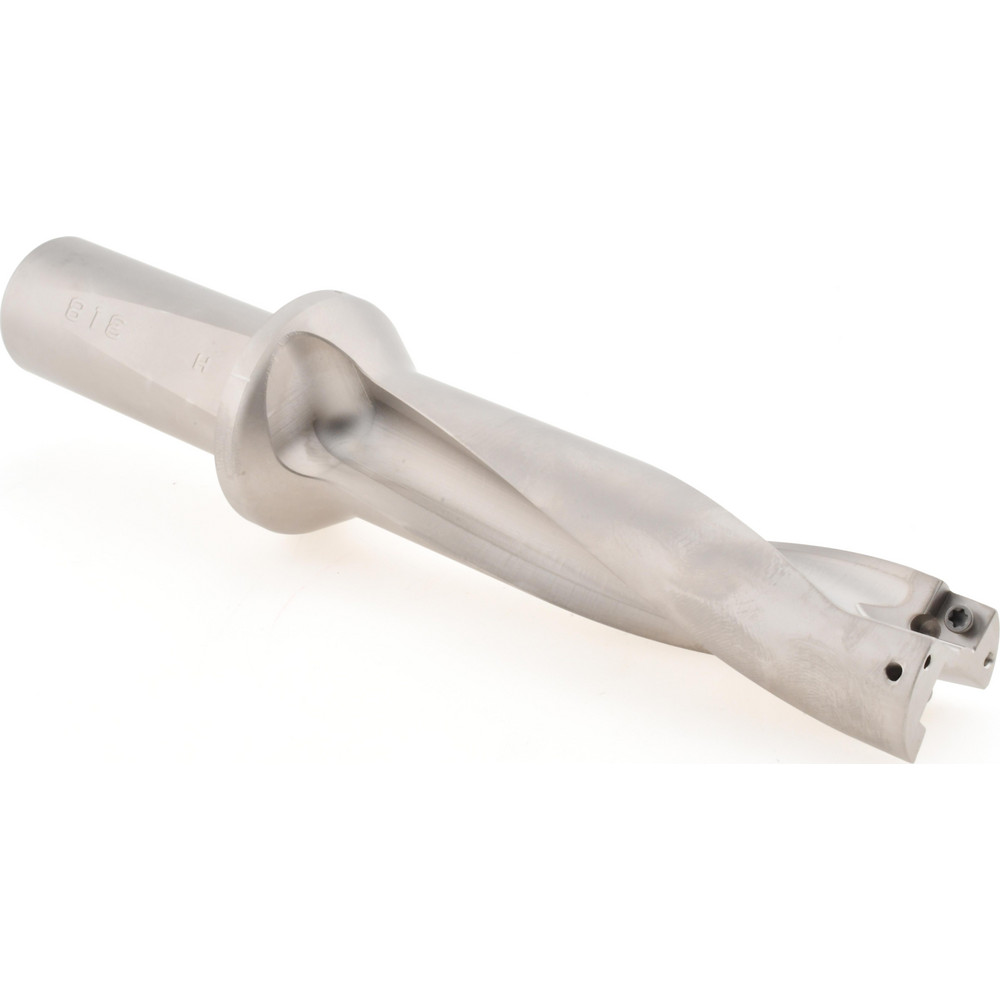

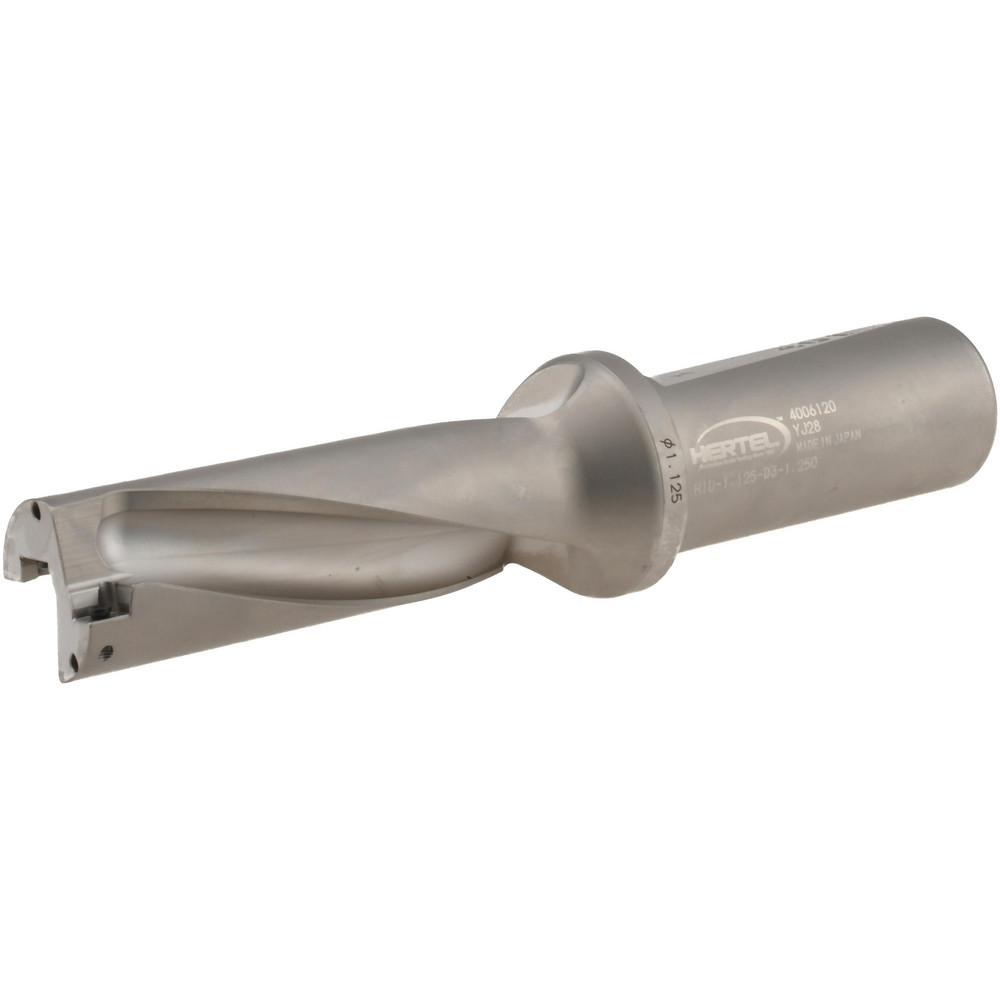

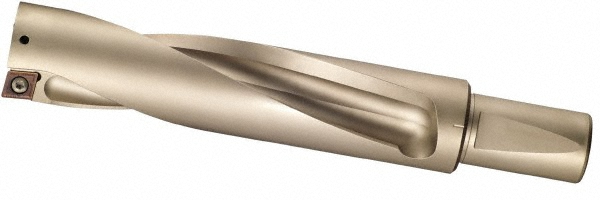

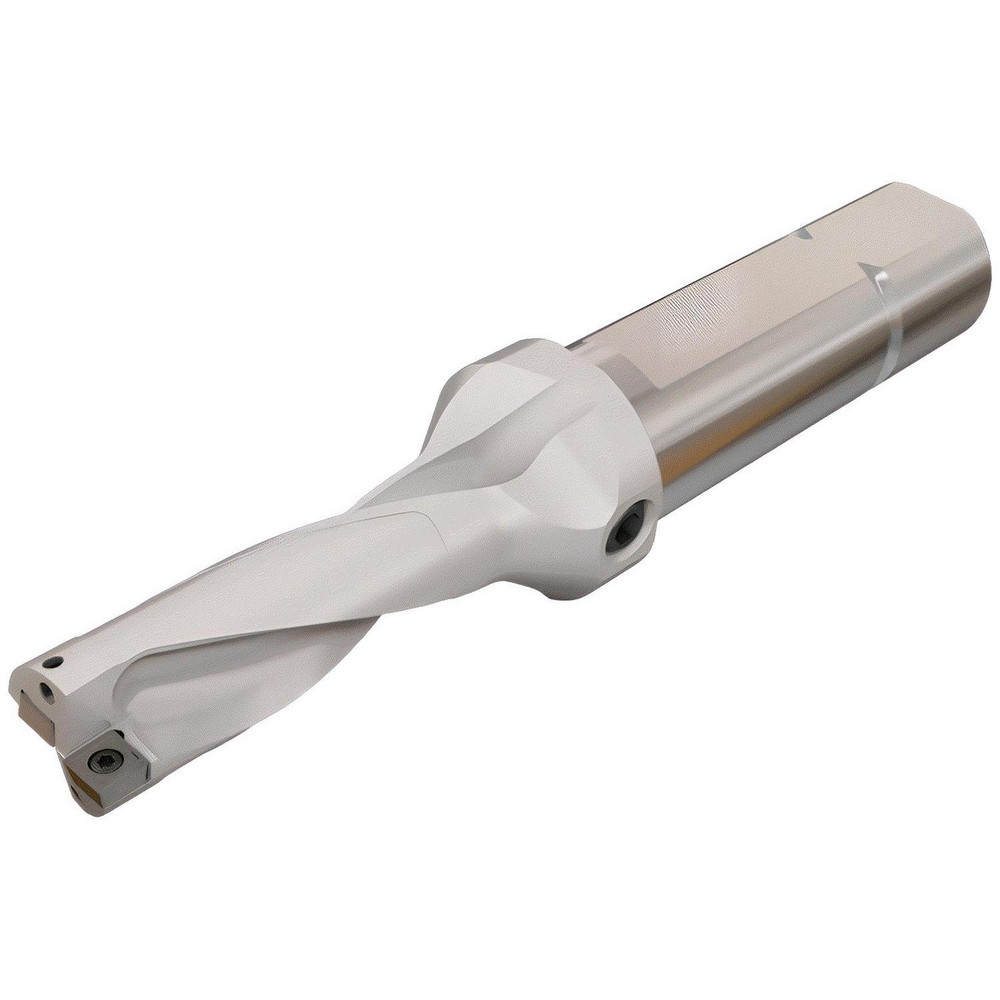

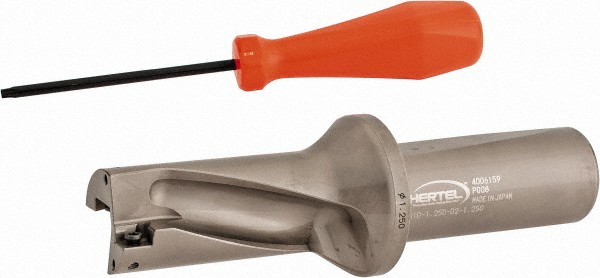

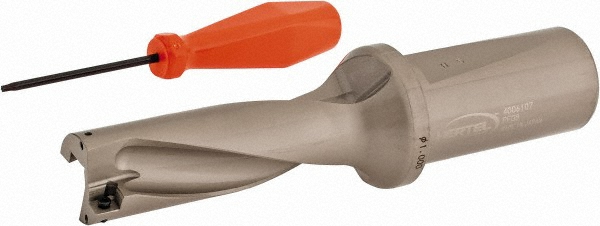

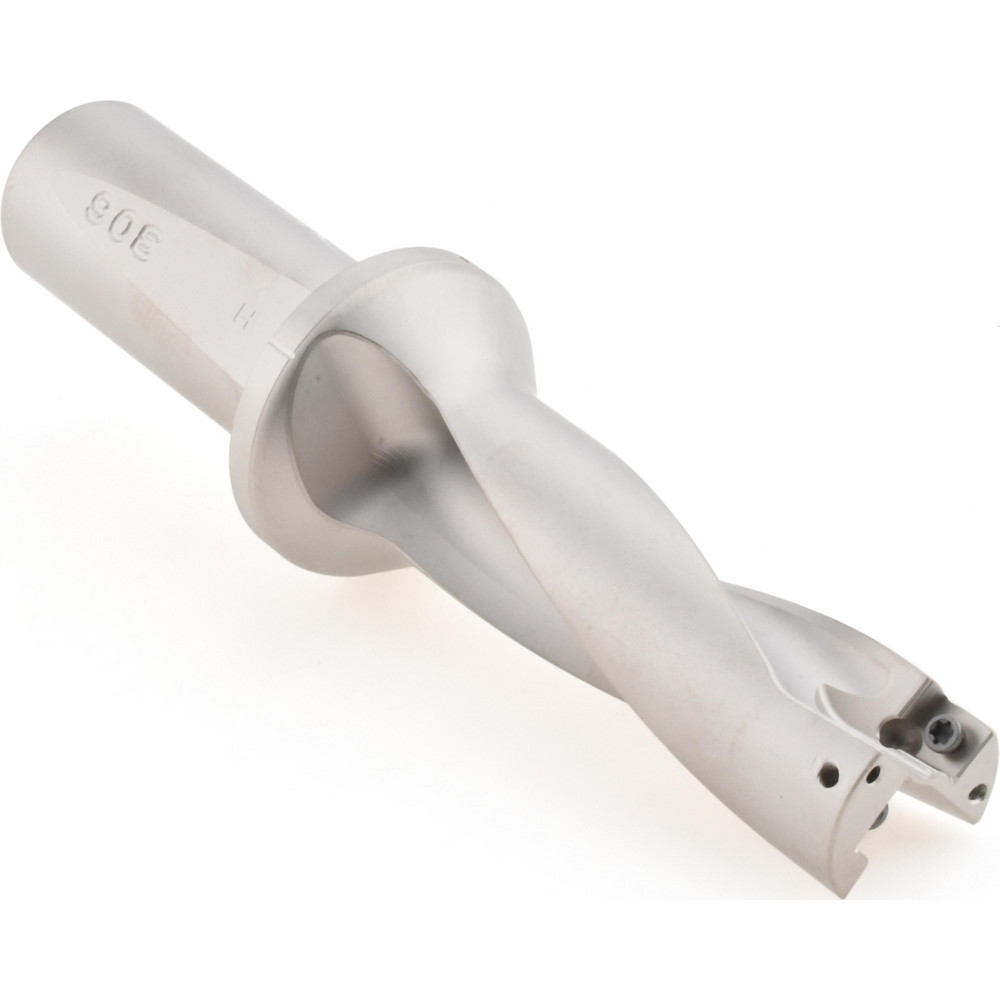

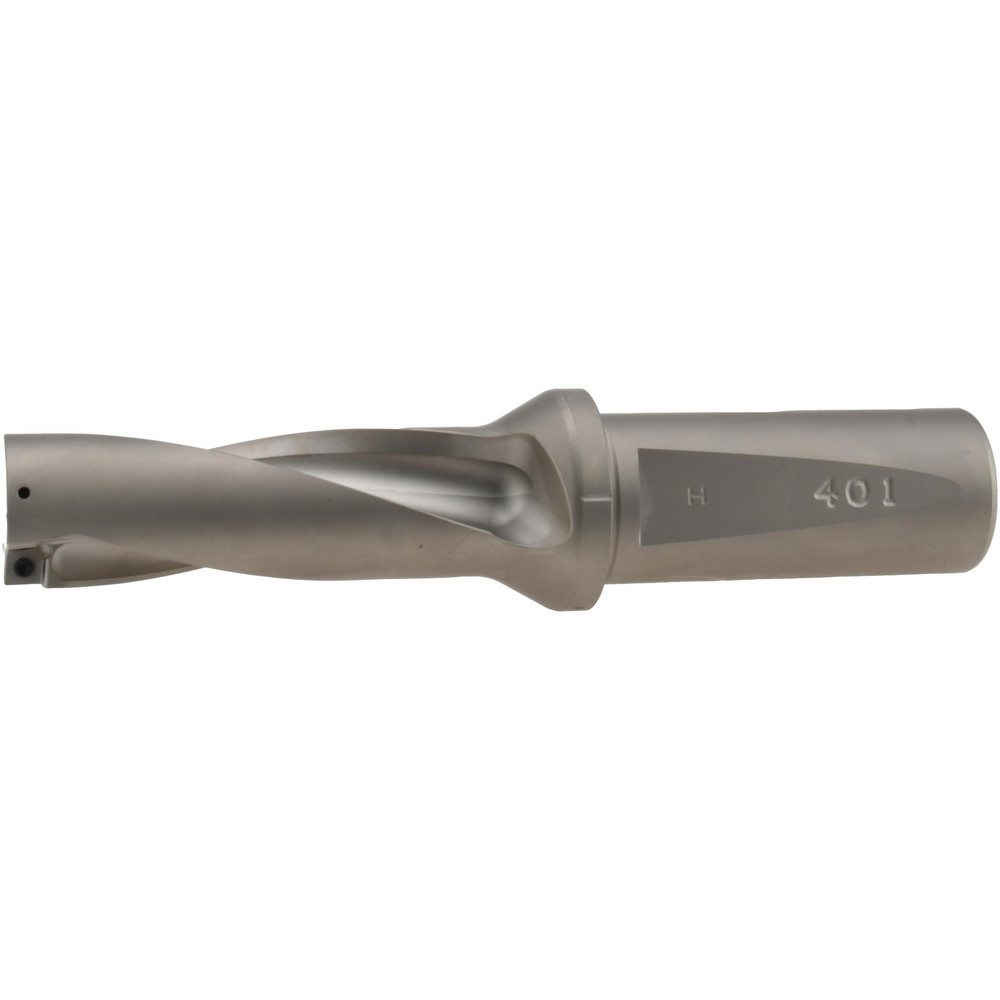

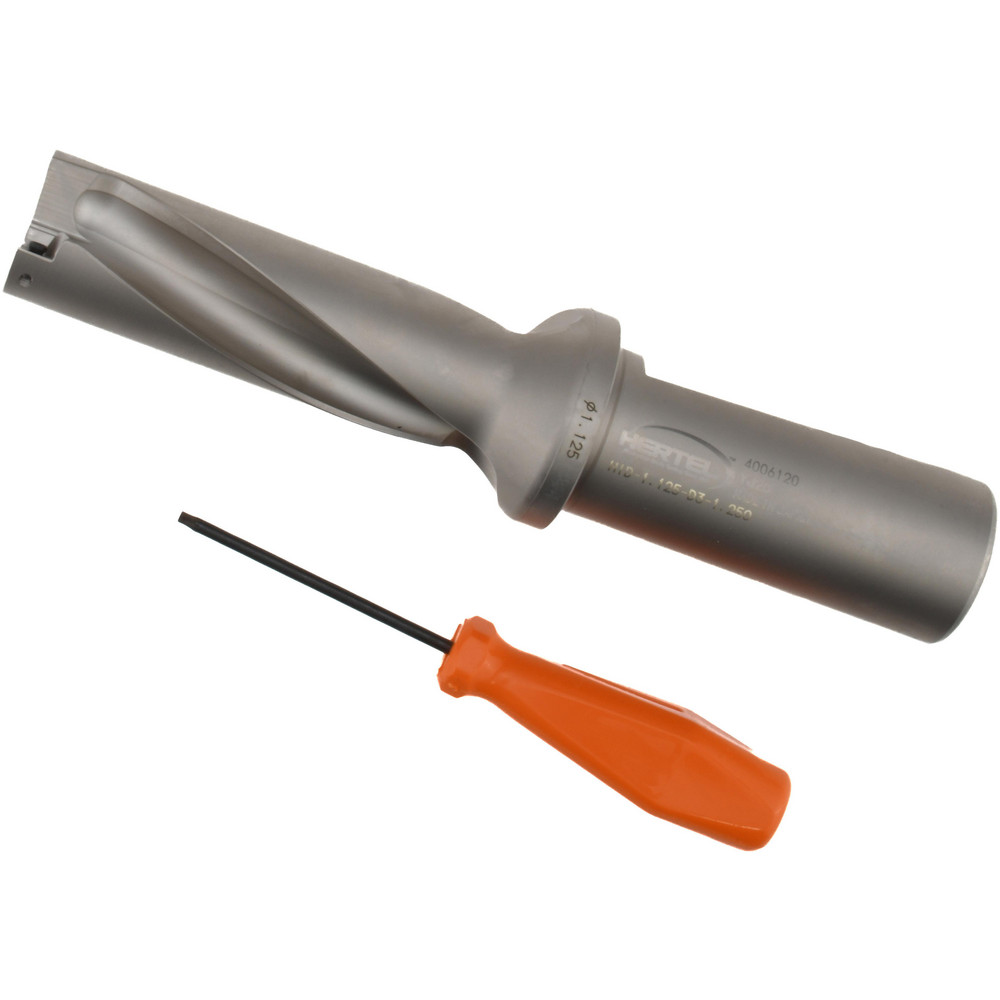

Straight-Cylindrical Shank
| Compatible Drill Style | HID |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.1590 |
| Maximum Drill Depth (Inch) | 3-3/8 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 3.4930 |
| Flute Length (mm) | 88.72 |
| Body Length (mm) | 182.93 |
| Body Length (Decimal Inch) | 7.2020 |
| Shank Length (Decimal Inch) | 3.0000 |
| Shank Length (mm) | 76.20 |
| UNSPSC Code | 23291503 |

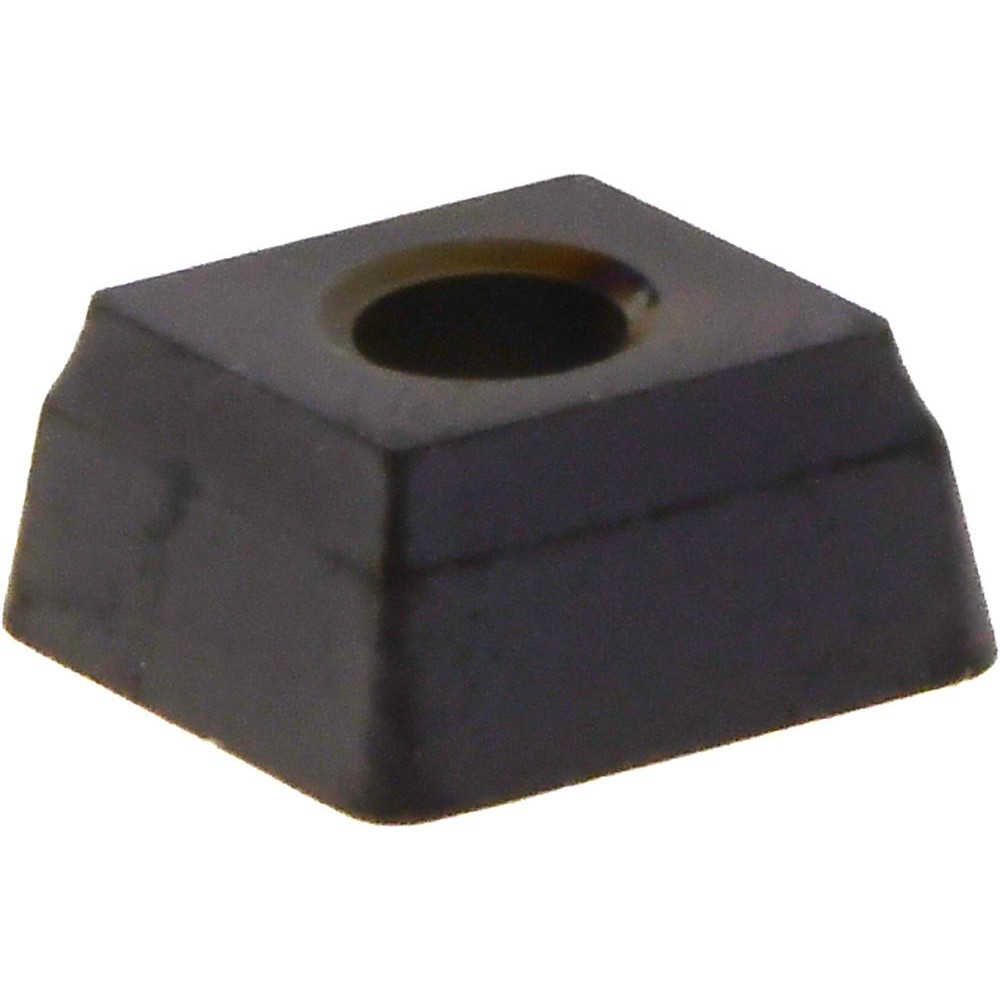

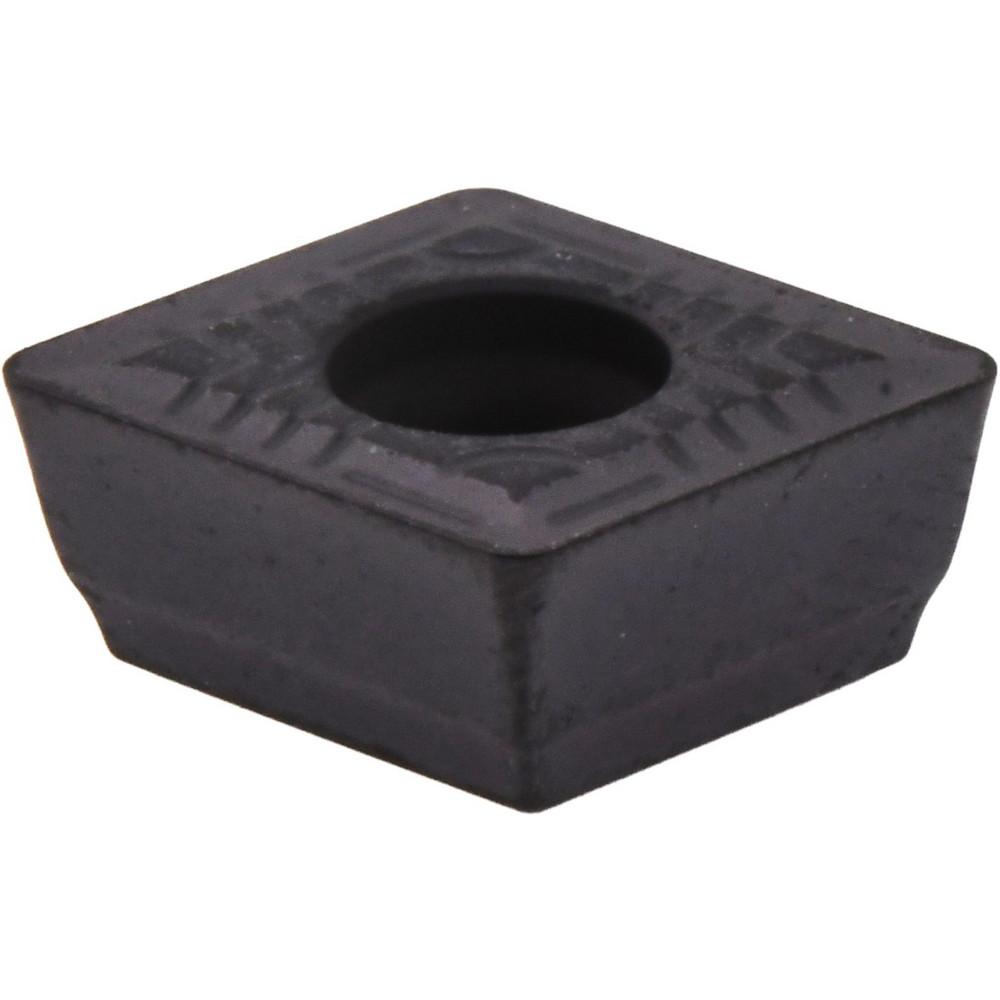

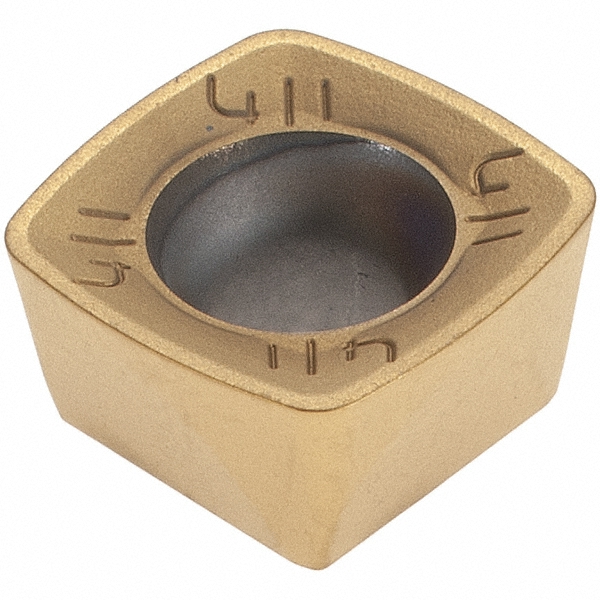

| Insert Compatibility | HPMT074006-GP |
| Collar Diameter (Decimal Inch) | 1.6140 |
| Collar Diameter (mm) | 41.00 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 39270301 |
