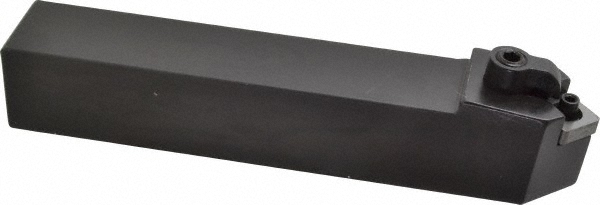

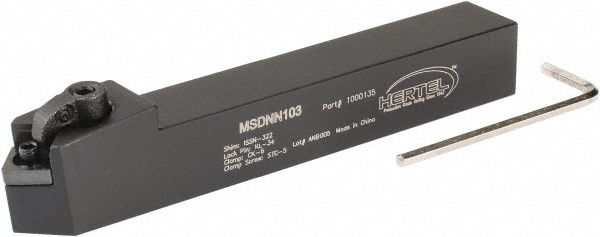

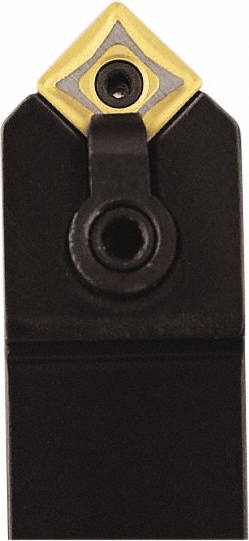

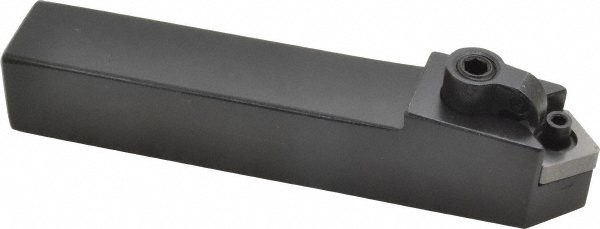

5/8 x 5/8" Shank, 4-1/2" OAL
| Toolholder Style | MSDN |
|---|---|
| Hand of Holder | Neutral |
| Insert Compatibility | SN..32. |
| Insert Holding Method | Screw; Clamp |
| Shank Width (Inch) | 5/8 |
| Shank Height (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 4.5000 |
| Coolant Through | No |
| Rake | Negative |
| Rake Angle | -7 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (Decimal Inch) | 0.6300 |
| Series | Multi-Option |
| Overall Length (Inch) | 4-1/2 |
| Head Length (Decimal Inch) | 1.1400 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3120 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | SN.. 322 |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | MSDNN103 |
| Country of Origin | China |
| MSC Number | MSC# 05696836 |
