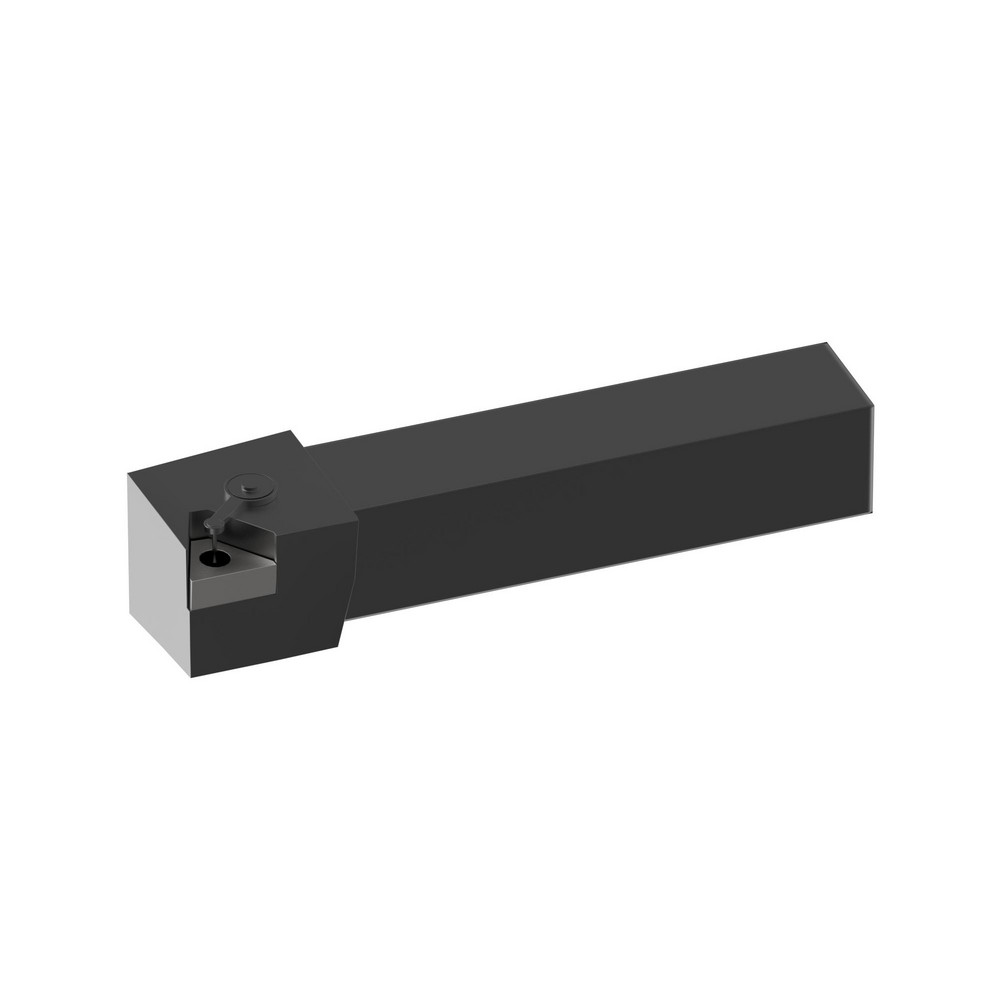

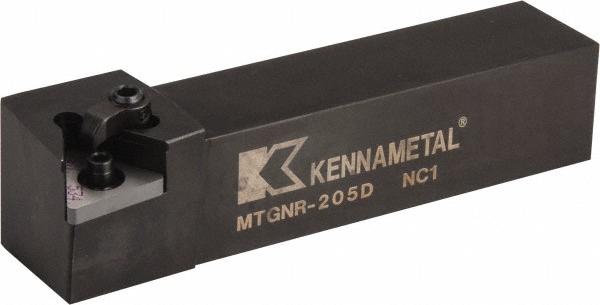

1-1/4 x 1-1/4" Shank, 6" OAL
| Toolholder Style | MTGN |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | TN..54. |
| Insert Holding Method | Screw; Clamp |
| Shank Width (Inch) | 1-1/4 |
| Shank Height (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | No |
| Rake | Negative |
| Rake Angle | -5 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | Multi-Option |
| Overall Length (Inch) | 6 |
| Head Length (Decimal Inch) | 1.4400 |
| Back of Bar to Cutting Edge (Inch) | 1-1/2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | TN.. 543 |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | MTGNR; L205D |
| Country of Origin | China |
| undefined | undefined |
| MSC Number | MSC# 05697156 |
