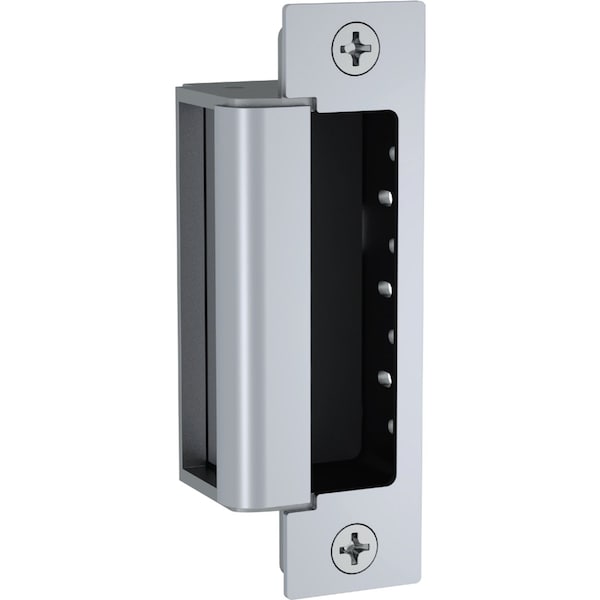

Electric Door Strike, Stainless Steel, Satin Stainless, For Use With: Mortise/Cylindrical Locksets
| Item | Electric Door Strike |
|---|---|
| Performance | Heavy-Duty |
| Failure Mode | Fail Safe |
| Input Voltage | 12/24V |
| Door Frame Type | Wood, Hollow Metal |
| Faceplate Depth | 1-5/8 in |
| Faceplate Height | 4-7/8 in |
| Faceplate Width | 1-1/4 in |
| Pull Force | 1,500 lb |
| Grade | 1 |
| Finish | Satin Stainless |
| Strikes | 1,000,000 Cycles |
| Features | Fail Safe/Fail Secure, Field Selectable, Non Handed |
| Material | Stainless Steel |
| Fire Rated | Yes |
| For Use With | Mortise/Cylindrical Locksets |
| Standards | ANSI-ASTM E330, ANSI/BHMA A156.31 Grade 1, ANSI/SDI A250.13, ASTM E152, CSFM, CAN/ULC S104, Florida Building Code Approved TAS 201, 202, 203, RoHS Compliant, UL 294 |

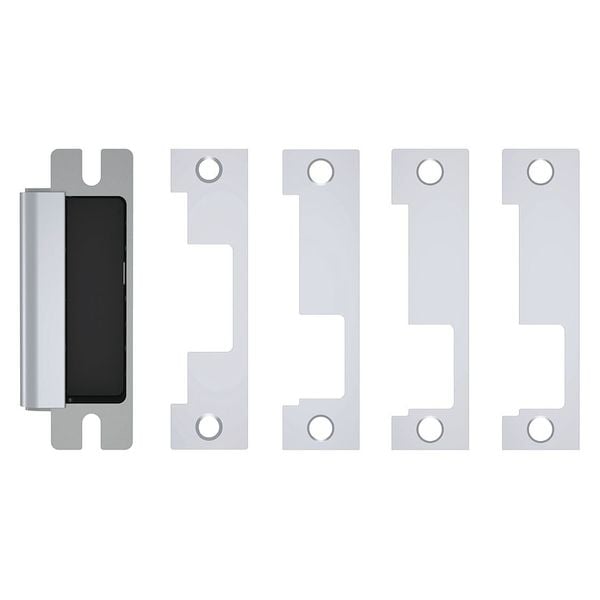

| Includes | Faceplate Kit |
| Bolt Throw | 1 in |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative, Declare |
| Strike Cycles | 1,000,000 |
| For Use with Door Material | Wood, Metal |
| Includes Hardware | Hardware Included |
| UL Fire Rating | UL10C |
| Performance Grade | 1 |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Strike Type | Cylindrical, Mortise |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
