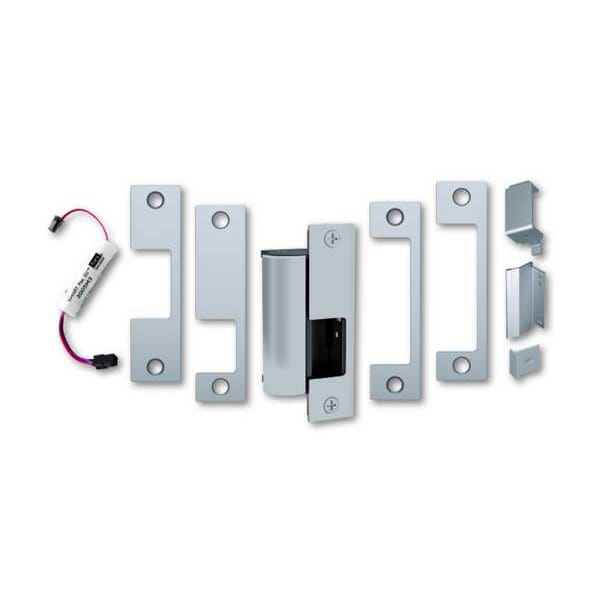

Electric Door Strike, Stainless Steel, Satin Stainless Steel, For Use With: Strike Plate 4-7/8 in
| Item | Electric Door Strike |
|---|---|
| Performance | Heavy-Duty |
| Failure Mode | Fail Safe |
| Input Voltage | 12/24V |
| Door Frame Type | Wood, Metal |
| Faceplate Depth | 1-11/16 in |
| Faceplate Height | 4-7/8 in |
| Faceplate Width | 1-1/4 in |
| Pull Force | 2,500 lb |
| Grade | 1 |
| Finish | Satin Stainless Steel |
| For Use With | Strike Plate 4-7/8 in |
| Bolt Throw | 5/8 in |
| Standards | ANSI/BHMA A156.31 Grade 1, ANSI/SDI 250.13 Certified, ASTM E152, ASTM E330, Florida Building Code Approved TAS 201, 202, 203 (Old), RoHS Compliant, UL 294 |
| Strikes | 1,000,000 Cycles |
| Includes | (5) Interchangeable Faceplates |
| Features | Internal Solenoid, Non-Handed |
| Fire Rated | Yes |
| Material | Stainless Steel |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative, Declare |
| Strike Type | Cylindrical, Mortise |
| Includes Hardware | Hardware Included |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Strike Cycles | 1,000,000 |
| UL Fire Rating | UL10C |
| Performance Grade | 1 |
| For Use with Door Material | Wood, Metal |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
