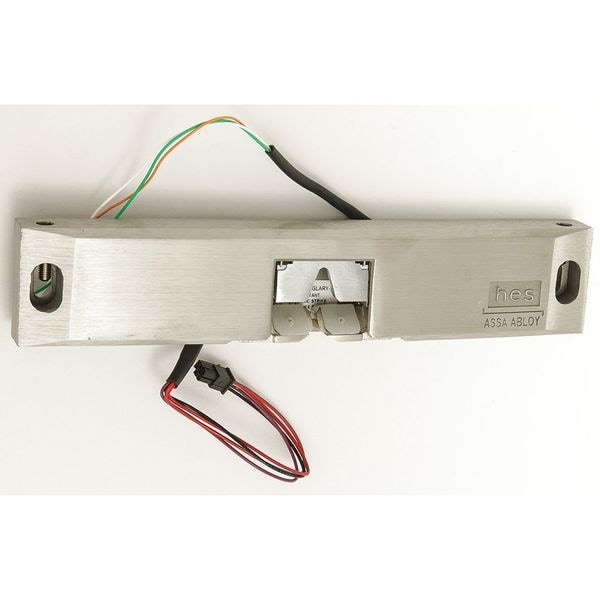

Electric Door Strike, Stainless Steel, Stainless steel, For Use With: Rim Exit Device
| Item | Electric Door Strike |
|---|---|
| Performance | Heavy-Duty |
| Failure Mode | Fail Safe |
| Input Voltage | 12/24V DC |
| Door Frame Type | Wood, Metal |
| Faceplate Depth | 3/4 in |
| Faceplate Height | 9 in |
| Faceplate Width | 1-3/4 in |
| Pull Force | 1,500 lb |
| Grade | 1 |
| Finish | Stainless steel |
| Includes | Mounting hardware |
| For Use With | Rim Exit Device |
| Bolt Throw | 3/4 in |
| Strikes | 500,000 Cycles |
| Fire Rated | Yes |
| Material | Stainless Steel |
| Features | Narrow Style |
| Standards | ASTM E152, CAL FIRE 3776-1654:0101, CSFM, NFPA 80-07 Compliant, RoHS Compliant, UL 294, UL 305, WHI Listed |
| Color | Satin Stainless Steel |
| Strike Cycles | 1,000,000 |
| Strike Type | Rim |
| Includes Hardware | Hardware Included |
| Fire Rating | 3 hr |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Performance Grade | 1 |
| UL Fire Rating | UL10C |
| For Use with Door Material | Wood, Metal |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
