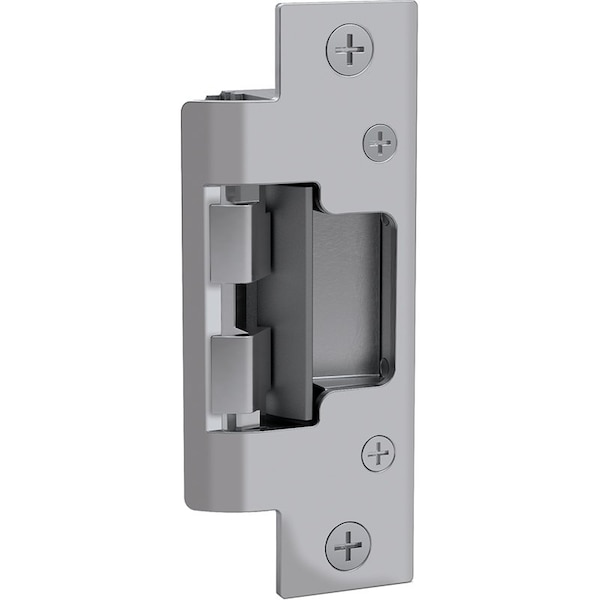

Electric Strike, Satin Stainless Steel, For Use With: Fire Door, Door, Outdoor
| Item | Electric Strike |
|---|---|
| Failure Mode | Fail Safe, Fail Secure |
| Input Voltage | 24V DC, 12V DC |
| Door Frame Type | Wood, Metal, Aluminum |
| Finish | Satin Stainless Steel |
| Series | 8300 |
| For Use With Lockset Type | Cylindrical |
| Length | 1.07 in |
| Features | Burglary Resistant, Field Selectable Operation, PoE Friendly, Fire Resistant, Dual Voltage, Tamper Resistant, Static Strength, Compact; Environmentally Friendly |
| Electrical/Mechanical | Electrical |
| Height | 4.86 in |
| For Use With | Fire Door, Door, Outdoor |
| Standards | ANSI/BHMA A156.31, Grade 1, UL 1034, UL 294 listed, UL 10C fire rated, CAN/ULC-S104 fire door conformant, NFPA-252 fire door compliant, ASTM-E152 fire door compliant, NFPA 80-07 compliant |
| Includes | 801 Faceplate; 801A Faceplate |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
