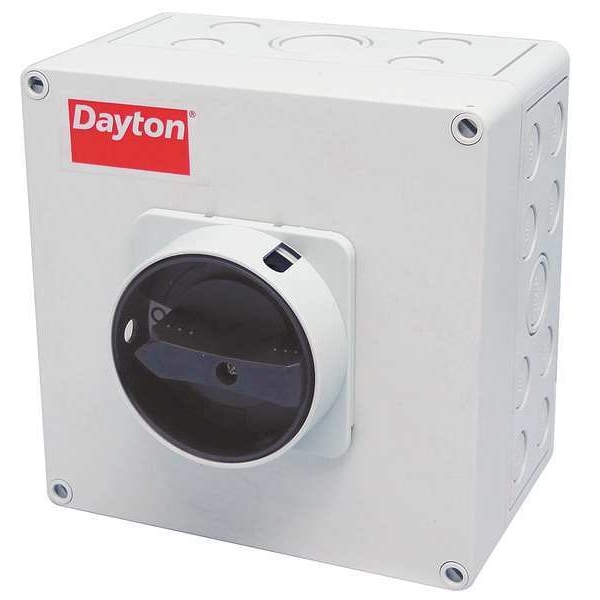

Interruptor de desconexión de una sola posición cerrada no fusible, 63 A, 600V CA, 3 polos, NEMA 12, 3R.
| Item | Enclosed Single Throw Disconnect Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | General |
| Amps | 63 |
| Voltage | 600 V AC |
| Phase | 3 |
| HP | 40 hp @ 600V AC |
| NEMA Enclosure Type | 3R, 12 |
| IP Rating | 65 |
| Material | Steel and Polycarbonate |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Width | 7.2 in |
| Depth | 5.8 in |
| Fusible / Nonfusible | Nonfusible |
| Standards | UL/CSA |
| Includes | Black Handle with Knockouts |
| Neutral Assembly Included | No |
| Height | 7.1 in |
| Use | Isolate or Disconnect A Load |
| Handle Color | Black |
| Features | Built-In Handle Interlock, Cover can be Removed in the On/Off Position, Knockout, On/Off Indicator |
| Enclosure Type | Enclosed |
| For Fuse Class | Not Applicable |
| For Environment | Indoor, Indoor Rated, Outdoor Rated |
| Housing Material | Polycarbonate |
| Horsepower @ 600V AC | 40 HP |
| Compatible with Manufacturer Model Number | Not Applicable |
| NEMA Enclosure Rating | 12, 3R, 4, 4X |
| Environment | Indoor, Outdoor |
| Current Rating | 80 A |
| Compatible with Manufacturer Part Number | Not Applicable |
| Compatible Manufacturer Part Number | Not Applicable |
| Compatible with Manufacturer Model Number [NEW] | Not Applicable |
| Compatible Manufacturer Model Number | Not Applicable |
| For Use with Mfr. Model Number | Not Applicable |
| Package Quantity | 1 |
