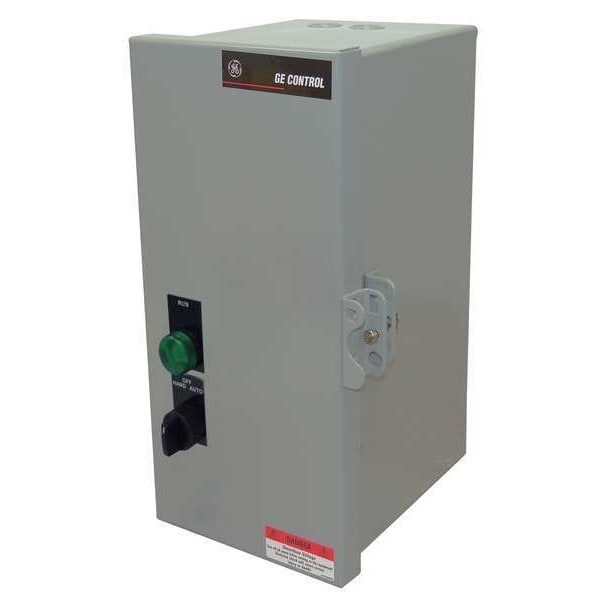

Arrancador magnético IEC no reversible, 1NA.
| Item | IEC Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 14.5 to 18 |
| Coil Volts | 120 V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 3 HP |
| HP @ 3 Phase - 575V | 15 HP |
| HP @ 3 Phase - 208V | 5 HP |
| Action | Nonreversing |
| HP @ 1 Phase - 240V | 3 HP |
| Amps AC | 18 A |
| NEMA Size | Not Applicable |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 5 HP |
| HP @ 1 Phase - 120V | 1 HP |
| Features | Hand/Off/Auto, Pilot Light |
| Depth | 5-1/2 in |
| Height | 14-1/2 in |
| Standards | CSA, UL Listed |
| Hz | 50/60 |
| Width | 6.4 in |
| Includes | Bi-metal Overload, Contactor |
| Overall Height | 14-1/2 in |
| Overall Width | 6.4 in |
| Coil Voltage | 120 V AC |
| Includes Pilot Light | Yes |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Number of Auxillary Contacts | 1 |
| Operator | Selector Switch |
| Horsepower @ Three Phase - 208V AC | 5 HP |
| Frequency | 50/60 Hz |
| Current AC | 18 A |
| Overload Protection Type | Thermal |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Reversing Capability | Non-Reversing |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| NEMA Enclosure Rating | 1 |
| Minimum Overload Relay Current Setting | 14.5 A |
| Starter Style | IEC |
| Maximum Overload Relay Current Setting | 18 A |
| Operator Function | Auto, Hand, Off |
| Overall Depth | 5-1/2 in |
| Horsepower @ Three Phase - 600V AC | 15 HP |
| Package Quantity | 1 |
