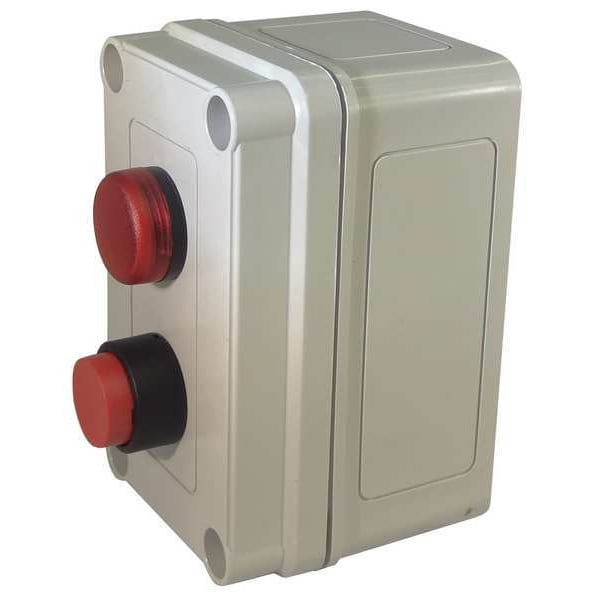

Estación de control de botón de presión, 1 contacto normalmente cerrado (NC), NEMA 4X.
| Item | Control Station |
|---|---|
| Contact Form | 1NO |
| Legend | No Legend |
| Type of Operator | Red Extended Button and Red Pilot Light |
| Number of Pilot Lights | 1 |
| Number of Operators | 1 |
| NEMA Rating | 4X |
| Series | Not Applicable |
| Hub Style | Not Applicable |
| Size | 22 mm |
| Contact Rating | 10A @ 600V AC, 5A @ 24V DC |
| Standards | CSA, UL Listed |
| Action | Momentary |
| Mechanical Interlock | No |
| IP Rating | IP66 |
| Enclosure Material | Thermoplastic |
| Lamp Module Voltage | 120V AC |
| Enclosure Color | Cream |
| Operator Color | Red |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | 5 A @ 24 V |
| Number of Speeds | Not Applicable |
| Operator Configuration | Push Buttons |
| Pilot Light Color | Red |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| Maintained Action Release | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Overall Height | 5.03 in |
| Selector Switch Number of Positions | Not Applicable |
| Panel Cutout Diameter | 22 mm |
| Hub Size - Maximum | Not Applicable |
| NEMA Enclosure Rating | 4X |
| Overall Depth | 3.02 in |
| Product Type | Control Station |
| Overall Width | 3.06 in |
| Mounting Orientation | Vertical, Horizontal |
| Package Quantity | 1 |
