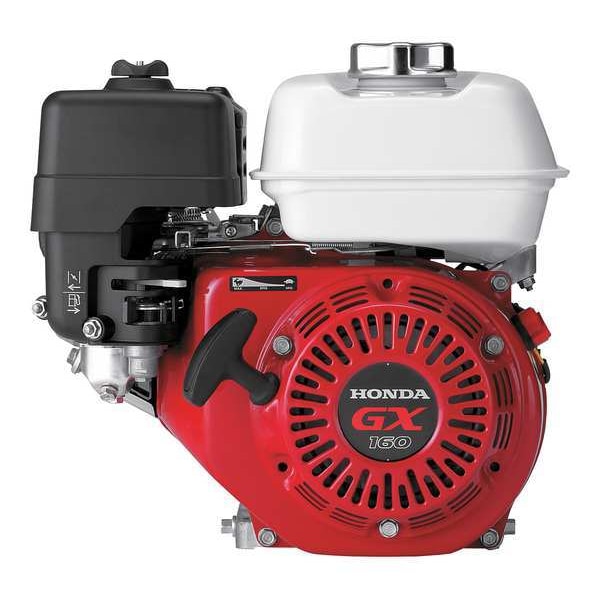

Gas Engine, 3600 rpm, Horizontal Shaft
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Gross Torque | 7.6 ft-lb |
| Shaft Orientation | Horizontal |
| Shaft Dia. (In.) | 5/8 in x 18 UNF |
| Shaft Length (In.) | 2.43 |
| Fuel Tank Capacity (Qt.) | 3.3 |
| PTO Shaft Height (In.) | 4.2 |
| Air Filter | Yes |
| Item | Gasoline Engine |
| Ignition Type | Transistor Magneto |
| Shaft Configuration | Threaded |
| Series | GX |
| PTO Shaft Dia. (In.) | 3/4 |
| Starter Type | Recoil |
| Agency Compliance | CARB/OHV 50 States |
| Overall Width (In.) | 14.3 |
| Engine RPM | 3,600 RPM |
| Function | General Purpose |
| RPM | 3,600 |
| Overall Height (In.) | 13.6 |
| Bearings | Ball |
| 4 Cycle Engine | yes |
| Start | Recoil |
| Cylinders | 1 |
| Rotation | Counterclockwise |
| Low Oil Shut Down | Yes |
| Overall H Facing PTO (In.) | 13.6 |
| Gear Box | No |
| Net Torque | 7.6 @ 2,500 rpm |
| Features | Cast Iron Cylinder Sleeve, Oil Alert |
| Overall W Facing PTO (In.) | 14.3 |
| Recommended Use | Agricultural Equipment, Commercial Lawn and Garden Equipment, Construction/Industrial Equipment, Forestry Equipment, Generators, Pressure Washers, Tillers/Cultivators, Water Pumps |
| Muffler | Yes |
| Design | Overhead Valve |
| Shaft Height (In.) | 4.2 |
| Application | General Purpose |
| Overall Depth (In.) | 12.2 |
| PTO Shaft Length (In.) | 2.43 |
| Maintenance Frequency | Annually |
| Overall Depth Facing PTO (In.) | 12.2 |
| Air Cleaner Type | Dual Element |
| PTO Shaft Key (In.) | 1-1/2 |
| Overall Height | 13-5/8 in |
| Standards | SAE J1349 |
| Overall Width | 14-5/16 in |
| PTO Shaft Height | 4 3/16 in |
| PTO Shaft Key | 1 1/2 in |
| Overall Depth | 12-3/16 in |
| Overall Depth Facing PTO | 12-3/16 in |
| Overall W Facing PTO | 14-5/16 in |
| Shaft Height | 4-3/16 in |
| Engine Cycle | 4-Cycle |
| Number of Cylinders | 1 |
| Engine Series | GX160 Series |
| Engine Displacement | 163 cc |
| Start Type | Recoil |
| Overall H Facing PTO | 13-5/8 in |
| PTO Shaft Diameter | 3/4 in |
| Shaft Diameter | 5/8 in |
| Horsepower | 4.8 |
| Maximum Speed | 3,600 rpm |
| CARB Compliant | CARB Compliant |
| PTO Shaft Length | 2-7/16 in |
| Engine Brand | Honda |
| Fuel Tank Capacity | 3.3 qt |
| Shaft Length | 2-7/16 in |
| Country of Origin (subject to change) | Thailand |
| Package Quantity | 1 |
