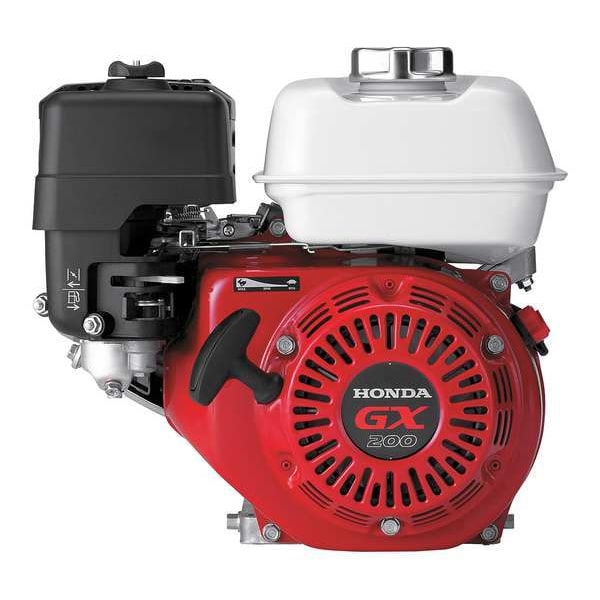

Gas Engine, Recoil Start, 3.3 qt. Fuel Cap
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Gross Torque | 9.1 ft-lb |
| Shaft Orientation | Horizontal |
| Shaft Dia. (In.) | 3/4 |
| Shaft Length (In.) | 2.43 |
| Fuel Tank Capacity (Qt.) | 3.3 |
| Net Torque | 9.1 @ 2,500 rpm |
| Starter Type | Recoil |
| Function | General Purpose |
| Series | GX |
| Maintenance Frequency | Annually |
| Low Oil Shut Down | Yes |
| Overall Height (In.) | 13.6 |
| Overall Depth (In.) | 12.6 |
| Overall Depth Facing PTO (In.) | 12.6 |
| Air Filter | Yes |
| PTO Shaft Key (In.) | 1-1/2 |
| PTO Shaft Height (In.) | 4.2 |
| Overall Width (In.) | 14.8 |
| 4 Cycle Engine | yes |
| PTO Shaft Dia. (In.) | 3/4 |
| Item | Gasoline Engine |
| Air Cleaner Type | Dual Element |
| Engine RPM | 3,600 RPM |
| Overall W Facing PTO (In.) | 14.8 |
| Ignition Type | Transistor Magneto |
| Design | Overhead Valve |
| Recommended Use | Agricultural Equipment, Commercial Lawn and Garden Equipment, Construction/Industrial Equipment, Forestry Equipment, Generators, Pressure Washers, Tillers/Cultivators, Water Pumps |
| Shaft Configuration | Key |
| Rotation | Counterclockwise |
| PTO Shaft Length (In.) | 2.43 |
| Cylinders | 1 |
| Shaft Height (In.) | 4.2 |
| Overall H Facing PTO (In.) | 13.6 |
| Application | General Purpose |
| Muffler | Yes |
| Features | Cast Iron Cylinder Sleeve, Oil Alert |
| RPM | 3,600 |
| Start | Recoil |
| Gear Box | No |
| Shaft Key (In.) | 1-1/2 |
| Agency Compliance | CARB/OHV 50 States |
| Bearings | Ball |
| Overall Height | 13-5/8 in |
| Overall Width | 14-13/16 in |
| Standards | SAE J1349 |
| Maximum Speed | 3,600 rpm |
| Shaft Height | 4-3/16 in |
| Overall H Facing PTO | 13-5/8 in |
| Overall Depth Facing PTO | 12-5/8 in |
| Overall W Facing PTO | 14-13/16 in |
| CARB Compliant | CARB Compliant |
| PTO Shaft Diameter | 3/4 in |
| Engine Brand | Honda |
| Number of Cylinders | 1 |
| Horsepower | 5.8 |
| Shaft Diameter | 3/4 in |
| Start Type | Recoil |
| Engine Cycle | 4-Cycle |
| Overall Depth | 12-5/8 in |
| Engine Series | GX200 Series |
| Shaft Length | 2-7/16 in |
| PTO Shaft Key | 1 1/2 in |
| PTO Shaft Height | 4 3/16 in |
| Shaft Key | 1 1/2 in |
| Engine Displacement | 196 cc |
| Fuel Tank Capacity | 3.3 qt |
| PTO Shaft Length | 2-7/16 in |
| Country of Origin (subject to change) | Thailand |
| Package Quantity | 1 |
