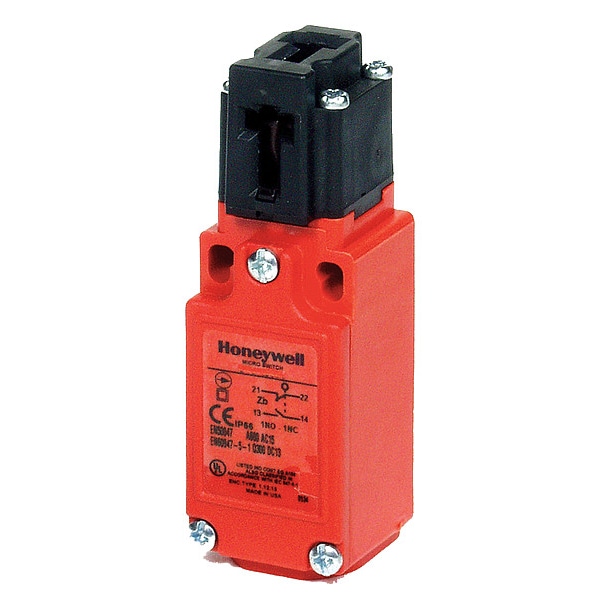

Interruptor de seguridad de interbloqueo 1NC/1NO Nema 1, 12, 13 IP 66.
| Item | Safety Interlock Switch |
|---|---|
| Style | 90 Degrees or Straight Key Actuated, Front and Top Opening, Rotating Head |
| Series | GKE |
| AC Contact Rating | 10 A |
| DC Contact Rating | 0.1 to 10 A @ 250 V |
| Solenoid Voltage | Not Applicable |
| Contact Form | 1NO/1NC |
| Connection Type | 1/2 in NPT Conduit |
| Height | 3.61 in |
| Width | 1.2 in |
| Depth | 1.2 in |
| IP Rating | IP67, IP66 |
| Operating Temp. Range | -13 to 185 deg F |
| Description/Special Features | 0.5 lb Extraction Force, Enclosure Double Insulated to IEC 536 Class II, Mechanical Life 1,000,000 Operations, Shock 50G per IEC 68-2-27, Vibration 10G per 68-2-6 |
| Standards | CCC, CE, cULus, SIL3 |
| NEMA Rating | 1, 12, 13 |
| Operating Force | 5 lb |
| Conduit Size | 1/2 in NPT |
| Contact Material | Silver |
| Head Material | Thermoplastic |
| Body Material | Plastic |
| Differential Travel | Not Applicable |
| Positive Travel | Not Applicable |
| Electrical Connection | 1/2 in NPT Conduit |
| Features | Red Switch Body |
| Overtravel | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Actuating Key Type | 90 Degrees |
| Operating Temperature - Maximum | 185 deg F |
| Pretravel | Not Applicable |
| NEMA Enclosure Rating | 12, 1, 13, 4, 4X |
| Operating Torque | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Includes Actuating Key | No Actuating Key Included |
| Overall Depth | 1.3 in |
| Key Hole Location | Front, Top |
| Actuator Material | Stainless Steel |
| Overall Width | 1.2 in |
| Overall Height | 3.61 in |
| Circuitry Action | Snap Action |
| Package Quantity | 1 |
