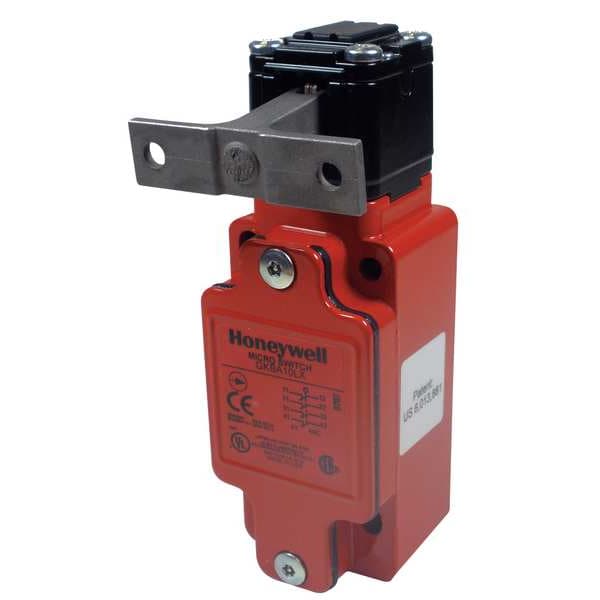

Interruptor de seguridad de enclavamiento 1NC/1NO Nema 1, 4, 12, 13.
| Item | Safety Interlock Switch |
|---|---|
| Style | 90 Degrees Key, Front and Top Opening |
| Series | GK |
| Actuator Length | 1.96 in |
| AC Contact Rating | 10 A |
| DC Contact Rating | 0.001 to 10 A @ 250 V |
| Solenoid Voltage | Not Applicable |
| Contact Form | 1NO/1NC |
| Connection Type | 1/2 in NPT Conduit |
| Height | 4.79 in |
| Width | 1.65 in |
| Depth | 1.68 in |
| IP Rating | IP67 |
| Operating Temp. Range | -13 to 185 deg F |
| Body Material | Zinc |
| Operating Force | 8 lb |
| Description/Special Features | 6 lb Extraction Force, Mechanical Life up to 15 Million Operations |
| NEMA Rating | 1, 12, 13, 4 |
| Contact Material | Silver |
| Standards | CE, CSA, UL Listed |
| Head Material | Zinc Die-Cast |
| Conduit Size | 1/2 in NPT |
| Differential Travel | Not Applicable |
| Features | Dual Entry Head |
| Electrical Connection | 10 Pin |
| Positive Travel | Not Applicable |
| Operating Temperature - Maximum | 185 deg F |
| Overall Depth | 1.68 in |
| Overall Width | 1.65 in |
| Actuator Material | Stainless Steel |
| NEMA Enclosure Rating | 12, 1, 13, 4 |
| Pretravel | Not Applicable |
| Overall Height | 4.79 in |
| Actuating Key Type | 90 Degrees |
| Operating Temperature - Minimum | -13 deg F |
| Operating Torque | Not Applicable |
| Key Hole Location | Front, Top |
| Overtravel | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Circuitry Action | Snap Action |
| Includes Actuating Key | No Actuating Key Included |
| Package Quantity | 1 |
