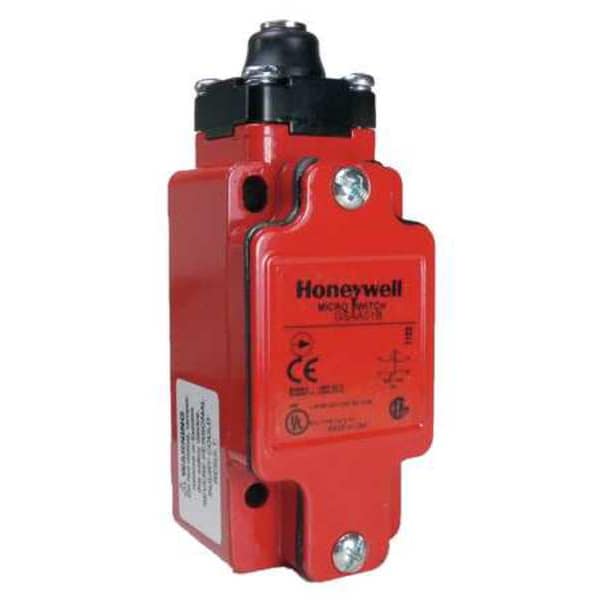

1NC/1NO Safety Interlock Switch Nema 1, 4, 12, 13
| Item | Safety Interlock Switch |
|---|---|
| Style | 0.3 in dia Top Pin Plunger |
| Series | GSS |
| Actuator Length | 1.48 in |
| AC Contact Rating | 10 A |
| DC Contact Rating | 0.1 to 10 A @ 250 V |
| Solenoid Voltage | Not Applicable |
| Contact Form | 1NO/1NC |
| Connection Type | 1/2 in NPT Conduit |
| Height | 3.23 in |
| Width | 1.65 in |
| Depth | 1.65 in |
| IP Rating | IP67 |
| Operating Temp. Range | -13 to 185 deg F |
| Positive Travel | 56 mm |
| Differential Travel | 11 mm |
| Operating Force | 3.6 in-lb Max |
| Pre-travel | 20mm |
| NEMA Rating | 1, 12, 13, 4 |
| Standards | CE, CSA, SIL3, UL Listed |
| Movement | Lateral |
| Contact Material | Silver |
| Conduit Size | 1/2 in NPT |
| Number of Poles | 1 |
| Description/Special Features | EN50041 Body Type, Non Plug-In, Shock 50G per IEC 68-2-27, Vibration 10G per IEC 68-2-26, Mechanical Life 15 Million Operations, FP, OP, OT, PT All to EN50041, Head and Cover Fixed with TORX(R) Socket Head Screws (Driver Supplied) |
| Body Material | Zinc |
| Features | Environmentally Sealed, Red Switch Body |
| Electrical Connection | 1/2 in NPT Conduit |
| Circuitry Action | Slow Action |
| Operating Temperature - Minimum | -13 deg F |
| Overtravel | Not Applicable |
| Key Hole Location | Not Applicable |
| Overall Height | 3.23 in |
| Hazardous Location Specification | Not Rated |
| Overall Width | 1.65 in |
| Pretravel | 20 mm |
| Operating Torque | Not Applicable |
| Overall Depth | 1.65 in |
| Operating Temperature - Maximum | 185 deg F |
| Includes Actuating Key | No Actuating Key Included |
| Actuating Key Type | Not Applicable |
| NEMA Enclosure Rating | 12, 1, 13, 4 |
| Package Quantity | 1 |
