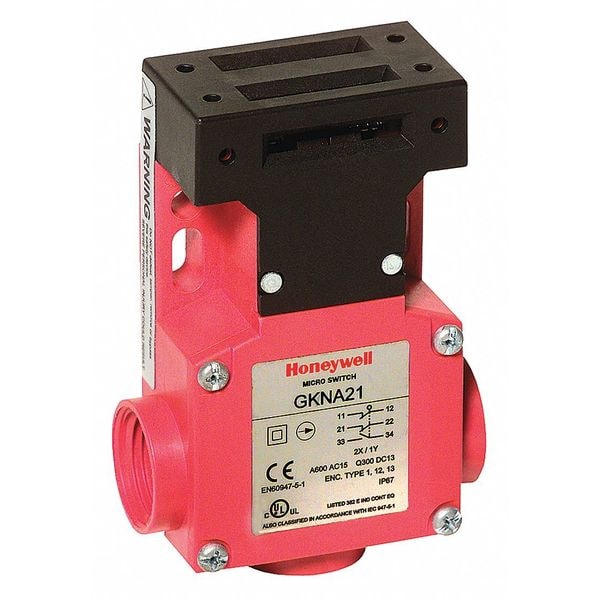

Interruptor de seguridad de tres circuitos Nema 1, 4, 12, 13 IP 67.
| Item | Safety Interlock Switch |
|---|---|
| Style | Multi-Entry Key Operated (Straight, 90 Degrees , or Spring Key) |
| Series | GKN |
| AC Contact Rating | 10 A |
| DC Contact Rating | 0.1 to 10 A @ 250 V |
| Solenoid Voltage | Not Applicable |
| Contact Form | 3NC |
| Connection Type | 1/2 in NPT Conduit |
| Height | 3.54 in |
| Width | 2.52 in |
| Depth | 1.18 in |
| IP Rating | IP67 |
| Operating Temp. Range | -13 to 185 deg F |
| Contact Material | Silver |
| Conduit Size | 1/2 in NPT |
| Operating Force | 5 lb |
| Description/Special Features | 0.5 lb Extraction Force, Common Footprint Safety Switch for Multiple Applicability, Mechanical Life 500,000 Cycles, Multiple Contacts, Multiple Key and Wiring Entry Points, Shock 50G per IEC 68-2-27, Vibration 10G per 68-2-6 |
| NEMA Rating | 1, 12, 13, 4 (Indoor Only) |
| Standards | CCC, CE, cULus, SIL3 |
| Body Material | Plastic |
| Features | Red Switch Body |
| Electrical Connection | 1/2 in NPT Conduit |
| Positive Travel | Not Applicable |
| Differential Travel | Not Applicable |
| NEMA Enclosure Rating | 12, 1, 13, 4, 4X |
| Actuator Material | Stainless Steel |
| Circuitry Action | Slow Action |
| Operating Torque | Not Applicable |
| Includes Actuating Key | No Actuating Key Included |
| Actuating Key Type | Flat, 90 Degrees Spring |
| Overall Height | 3.54 in |
| Hazardous Location Specification | Not Rated |
| Overtravel | Not Applicable |
| Pretravel | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Key Hole Location | Front, Top |
| Overall Width | 2.52 in |
| Overall Depth | 1.18 in |
| Package Quantity | 1 |
