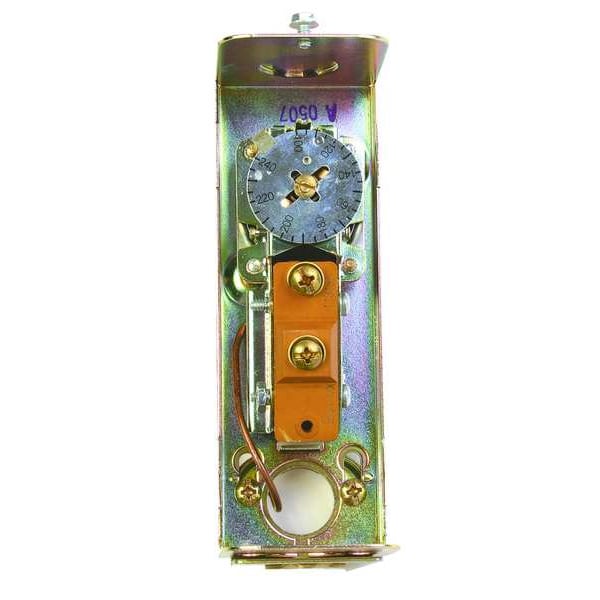

Aquastat Controller, Set At 240 F
| Type | Strap-On or Well Mount, High Limit, Manual Reset |
|---|---|
| Includes | Bracket for Strap-On Mounting, Heat-Conductive Compound |
| Item | Part |
| Width (In.) | 2 |
| Application | High Limit |
| Millvolt | 025 A @ 025 To 12 Vdc |
| Full Load Amps @ 120VAC | 8 A |
| System Switching | SPST |
| Mounting | Horizontal or Vertical |
| Temp. Range | 100 Degrees to 240 Degrees F |
| Bulb Size (In.) | 3/8 X 2 7/8 |
| Requires | Bracket for Strap-On Mounting, Stop Factory-Set at 240 Degrees F, and Heat-Conductive Compound |
| Agency Compliance | UL & CSA |
| Insulation Depth (In.) | 15 |
| Locked Rotor Amps @ 240V | 30.6 A |
| Differential | Manual Reset |
| Depth (In.) | 2-1/8 |
| Locked Rotor Amps @ 120V | 48 A |
| Height (In.) | 8-5/8 |
| Full Load Amps @ 240VAC | 13 A |
| Standards | LR95329-1, UL Listed |
| Switch Action | Breaks |
| Overall Height | 5-5/8 in |
| Number of Switches | 1 |
| Overall Width | 2 in |
| Product Type | Controller |
| Sensor Location | Remote |
| Maximum Control Temperature | 240 deg F |
| Full Load Current @ 240V AC | 5.1 A |
| Locked Rotor Current @ 120V | 48 A |
| Burner Circuit Voltage Type | Millivolt |
| Spud Size | 1/2 in NPT |
| Overall Depth | 2-1/8 in |
| Locked Rotor Current @ 240V | 30.6 A |
| Differential Temperature | Not Applicable |
| Contact Form | SPST |
| Capillary Tube Length | 1-1/2 in |
| Probe Diameter | 3/8 in |
| Multizone Control Compatible | Not Applicable |
| Probe Length | 2-7/8 in |
| Auto/Manual Switch Included | Yes |
| Full Load Current @ 120V AC | 8 A |
| Reset Type | Manual Reset |
| Insulation Depth | 1-1/2 in |
| Minimum Control Temperature | 100 deg F |
| Mounting Orientation | Horizontal, Vertical |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
