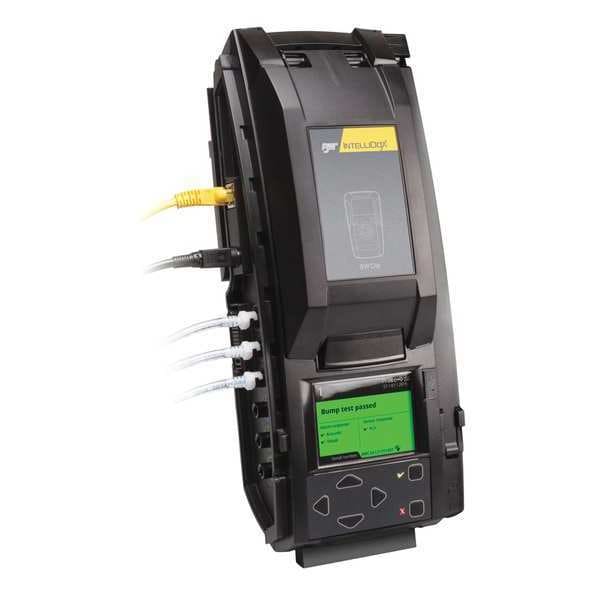

Docking Station, 5-13/32in.H x 4-5/16in.W
| Item | Docking Station |
|---|---|
| For Use With | Mfr. No. BWC2-H515, BWC2-H-B50, BWC3-H, BWC2-M, BWC2-M50200, BWC3-M, BWC2-S, BWC2-S24,BWC2-X, 36VN36 Accessory Required |
| Length | 14-13/64 in |
| Includes | End Plate, IntelliDoX Module, Quick Reference Guide, Single Inlet Key, Wall Mount |
| Test Time | Bump Less Than 30 sec, Calibration Less Than 2 min |
| Cylinder Holder | No |
| Operating Temp. Range | 50 to 95 deg F |
| Charger | Not Included |
| Regulator | No |
| Power Source | 110V AC, 60 Hz |
| Height | 5-13/32 in |
| Status Indicator | Display |
| Width | 4-5/16 in |
| Removable Memory Card | No |
| Features | Enables the Ability to Change Alarm Set Points, Set a Non-Compliance Indicator When a Bump Test is Due and Adjust Other Parameters for Maximum Flexibility, Performs the Quickest Bump Test in the Industry for Increased Uptime and No Wasted Calibration Gas |
| Standards | EMC Directive 2014/30/EU |
| Flow Rate - Maximum | 350 mL/min |
| Digital Memory Capacity | 2 GB |
| Test Stand Height | 5.41 in |
| Compatible Detector Manufacturer Part Number | BWC2-H-B50, BWC2-H515, BWC2-M, BWC2-M50200, BWC2-S, BWC2-S24, BWC2-X, BWC3-H, BWC3-M |
| Includes Software | Yes |
| Includes Charger | No |
| Manufacturer Warranty Length | 2 yr |
| Operating Temperature - Maximum | 95 deg F |
| Operating Temperature - Minimum | 50 deg F |
| Compatible Detector Model/Series | IntelliDoX |
| Display Screen Type | LCD |
| Included Regulator | 32UU78 |
| Test Stand Width | 4.31 in |
| Display Type | Digital |
| Includes Regulator | No |
| Sub-Brand | BW |
| Communication Protocol | Ethernet, USB |
| Includes Cylinder Holder | No |
| Operating Voltage | 12V DC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
