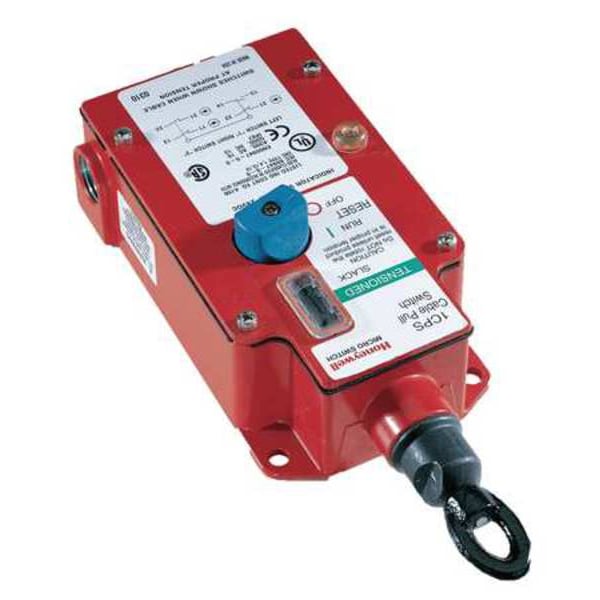

Interruptor de seguridad de tracción de cable con una sola cabeza, 1NA/1NC, 1/2 NPT, LED de 120VCA.
| Item | Emergency Cable Pull Switch |
|---|---|
| Switch Function | Maintained |
| Mounting Style | Single End |
| AC Contact Rating | 10 A @ 600 V |
| Contact Form | 1NO/1NC |
| Reset | Rotary Knob |
| Max. Cable Span | 250 ft |
| Operating Force | 3 to 5 lb |
| NEMA Rating | 1, 12, 13, 4 |
| Indicator | LED Light |
| Switching Ability | Single Cable |
| DC Contact Rating | 2.5 A @ 24 V |
| For Use With | Microswitch CPS Accessories |
| Cable Connection Location | Left, Right |
| Width | 3.9 in |
| Min. Current | 50mA to 10A |
| Depth | 2.57 in |
| Case Material | Zinc Die Cast |
| Standards | CE, CSA, UL Listed |
| IP Rating | IP67 |
| Thermal Amperage | 10 A |
| Wiring Entry | 1/2 in NPT |
| Length | 10.62 in |
| Length (Straight Wireway) | 10.62 in |
| Product Type | Single Ended |
| Series | 1CPS |
| NEMA Enclosure Rating | 12, 4, 1, 13 |
| Operating Temperature - Minimum | -40 deg F |
| Contact Material | Silver Alloy |
| Thermal Current | 10 A |
| Cable Span - Maximum | 250 ft |
| Action | Maintained |
| Overall Width | 3.9 in |
| Hazardous Location Specification | Not Applicable |
| Pull Force | 40 lb |
| Operating Temperature - Maximum | 176 deg F |
| Horsepower | Not Applicable |
| Overall Depth | 2.57 in |
| Package Quantity | 1 |
