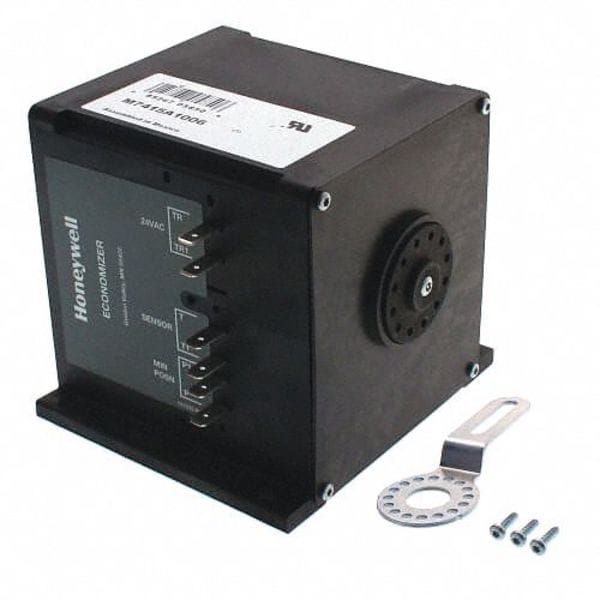

Damper Actuator Proportioning, 25 Lb-In
| Mounting Type | Foot Mounted |
|---|---|
| Spring Return | Spring Return |
| Signal Type | Proportional |
| Torque | 25 in-lb |
| Voltage | 24V AC |
| Item | Actuator |
| Electrical Connections | Quick-connect Terminals |
| Motor Direction | CCW |
| Shaft Type | Single-Ended |
| Width | 5 in |
| Stroke Deg. | 90 |
| Timing | 90 sec |
| Height | 4-1/2 in |
| For Use With | Combustion Air Dampers Used In Residential or Commercial HVAC Equipment, Control of Economizer Systems, Ventilation Dampers |
| Ambient Temp. Range | -25 to 125 deg F |
| Depth | 5-3/16 in |
| Power Consumption | 8 VA |
| Application | Dampers, Economizers |
| Overall Height | 4-1/2 in |
| Rated Torque | 25 in-lb |
| Product Type | Actuator |
| Overall Depth | 5-1/4 in |
| Valve Application | Damper |
| Overall Width | 5 in |
| Shaft Rotation | CCW |
| Maximum Operating Temperature | 125 deg F |
| Time to Close | 90 sec |
| Number of Auxiliary Switches | 0 |
| Input Voltage | 24V AC |
| Minimum Operating Temperature | -25 deg F |
| Electrical Connection Type | Hardwired |
| Stroke Degree | 90 Degrees |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
