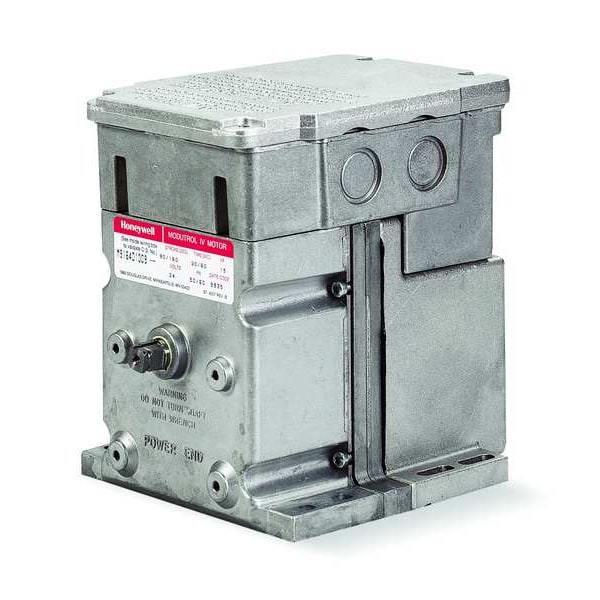

Electric Actuator, 150 in-lb, Remote Mount
| Mounting Type | Remote Mount |
|---|---|
| Spring Return | Non-Spring Return |
| Signal Type | Proportional |
| Torque | 150 in-lb |
| Voltage | 24V AC |
| Type | Non-Spring Return |
| Shaft Type | Double-Ended |
| Power Rating | 18 W |
| Includes | Wiring Box |
| Motor Direction | CW |
| Width | 5-1/2 in |
| Power Consumption | 15 VA |
| Depth | 7-5/16 in |
| Timing | 30 to 60 sec Nominal @ 60 Hz |
| Ambient Temp. Range | -40 to 150 deg F |
| Electrical Connections | Quick-connect Terminals |
| Item | Actuator |
| Replaces Honeywell Motors | Mfr. No. M944A, Mfr. No. M954C, Mfr. No. M954D |
| Height | 6-7/16 in |
| For Use With | Series 70 Electronic Controllers |
| Stroke Deg. | 90 to 160 |
| Minimum Operating Temperature | -40 deg F |
| Input Voltage | 24V AC |
| For Shaft Diameter | Not Applicable |
| Rated Torque | 150 in-lb |
| Electrical Connection Type | Hardwired |
| Compatible with Series | 70 |
| Number of Auxiliary Switches | 0 |
| Overall Height | 6-1/2 in |
| NEMA Rating | 3 |
| For Shaft Width | 3/8 in |
| Maximum Operating Temperature | 150 deg F |
| Valve Application | Damper, Valve |
| For Shaft Height | 3/8 in |
| Application | Dampers, Valves |
| Stroke Degree | 90 to 160 Degrees |
| Overall Width | 5-1/2 in |
| Time to Close | 60 sec |
| Overall Depth | 7-3/8 in |
| For Shaft Shape | Square |
| Shaft Rotation | CW |
| Product Type | Actuator |
| Standards | NEMA 3 wiring box, UL Listed and CSA Certified |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
