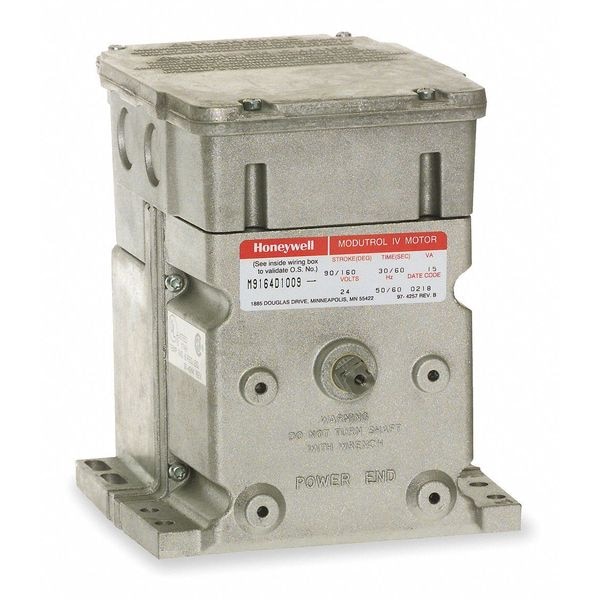

Electric Actuator, 150 in.-lb., SPDT
| Mounting Type | Remote Mount |
|---|---|
| Spring Return | Non-Spring Return |
| Signal Type | Floating Point |
| Torque | 150 in-lb |
| Voltage | 24V AC |
| Type | Non-Spring Return |
| Timing | 30 to 60 sec |
| Depth | 7-5/16 in |
| Item | Actuator |
| Motor Direction | CW, CCW |
| Switch Type | SPDT |
| Replaces Honeywell Motors | Mfr. No. M644A-E |
| Shaft Type | Double-Ended |
| Power Consumption | 17 VA |
| Includes | Wiring Box |
| Height | 6-7/16 in |
| Ambient Temp. Range | -40 to 140 deg F |
| Stroke Deg. | 90 to 160 |
| Width | 5-1/2 in |
| Electrical Connections | Quick-connect Terminals |
| Overall Depth | 7-3/8 in |
| Time to Close | 60 sec |
| Standards | NEMA 3 wiring box, UL Listed and CSA Certified |
| Product Type | Actuator |
| For Shaft Shape | Square |
| For Shaft Height | 3/8 in |
| Overall Width | 5-1/2 in |
| For Shaft Diameter | Not Applicable |
| Electrical Connection Type | Hardwired |
| Maximum Operating Temperature | 140 deg F |
| Overall Height | 6-1/2 in |
| For Shaft Width | 3/8 in |
| Shaft Rotation | CW, CCW |
| Valve Application | Damper, Valve |
| Stroke Degree | 90 to 160 Degrees |
| Contact Form | SPDT |
| Input Voltage | 24V AC |
| Rated Torque | 150 in-lb |
| Number of Auxiliary Switches | 0 |
| Minimum Operating Temperature | -40 deg F |
| NEMA Rating | 3 |
| Application | Dampers |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
